CVVT System Mode

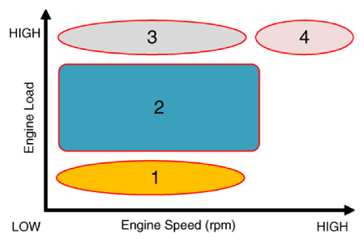

G13403333Courtesy of KIA MOTORS AMERICA, INC.

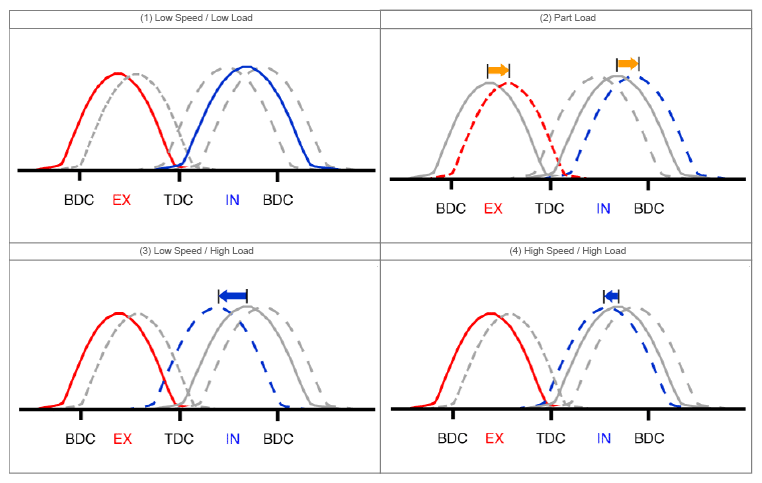

G13403334Courtesy of KIA MOTORS AMERICA, INC.
Driving Condition Exhaust Valve Intake Valve
Valve Timing Effect Valve Timing Effect
(1) Low Speed/Low Load Completely Advance
  1. * Valve Under-lap
  2. * Improvement of combustion stability
 Completely Retard
  1. * Valve Under-lap
  2. * Improvement of combustion stability
(2) Part Load Retard
  1. * Increase of expansion work
  2. * Reduction of pumping loss
  3. * Reduction of HC
 Retard
  1. * Reduction of pumping loss
(3) Low Speed/High Load Retard
  1. * Increase of expansion work
 Advance
  1. * Prevention of intake back flow (Improvement of volumetric efficiency)
(4) High Speed/High Load Advance
  1. * Reduction of pumping loss
 Retard
  1. * Improvement of volumetric efficiency
