MDPS System A/S Workflow

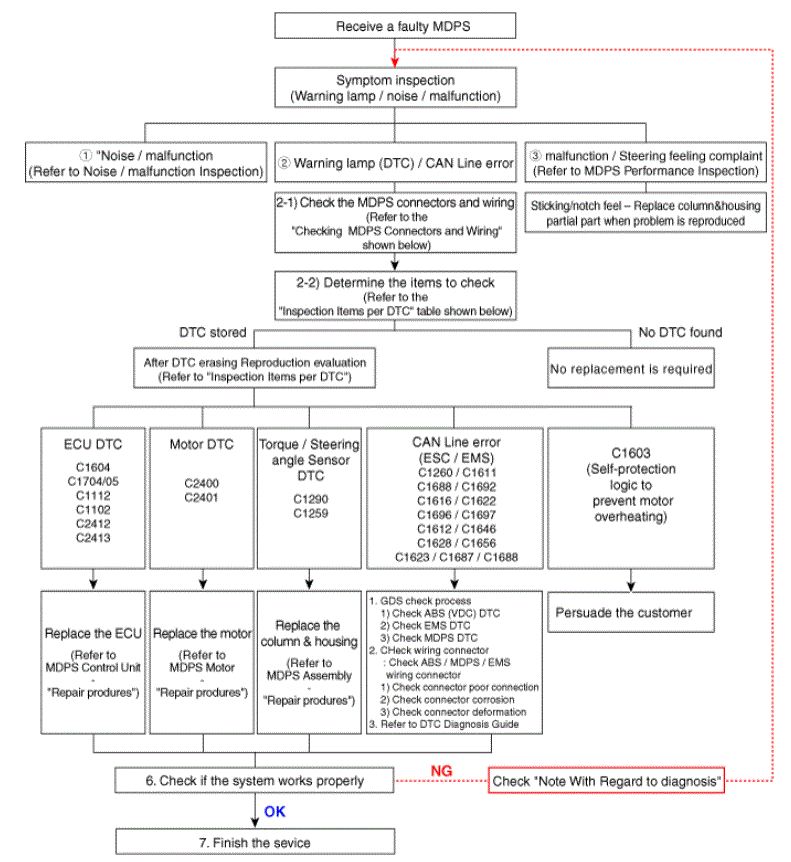

G13404145Courtesy of KIA MOTORS AMERICA, INC.

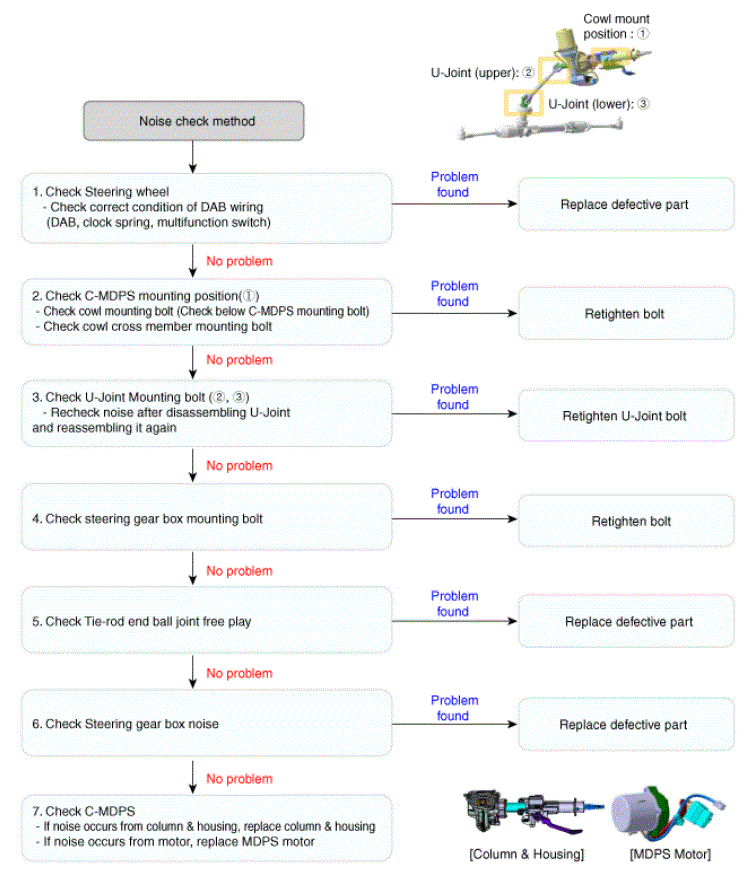

G13404146Courtesy of KIA MOTORS AMERICA, INC.

(2) Warning lamp (DTC)/CAN Line error
