Smart Key Status Check

  1. Connect the cable of KDS to the data link connector in driver side crash pad lower panel.
  2. After IG ON, select the "SMK STATUS INFO".

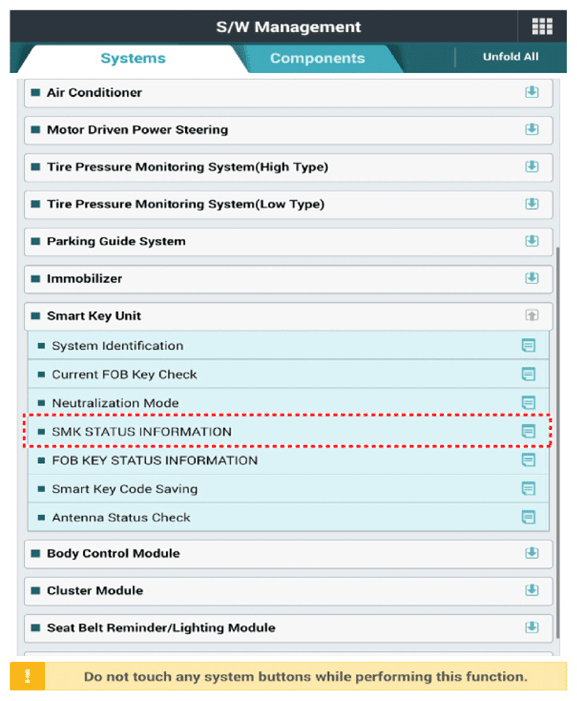

    G13405588Courtesy of KIA MOTORS AMERICA, INC.

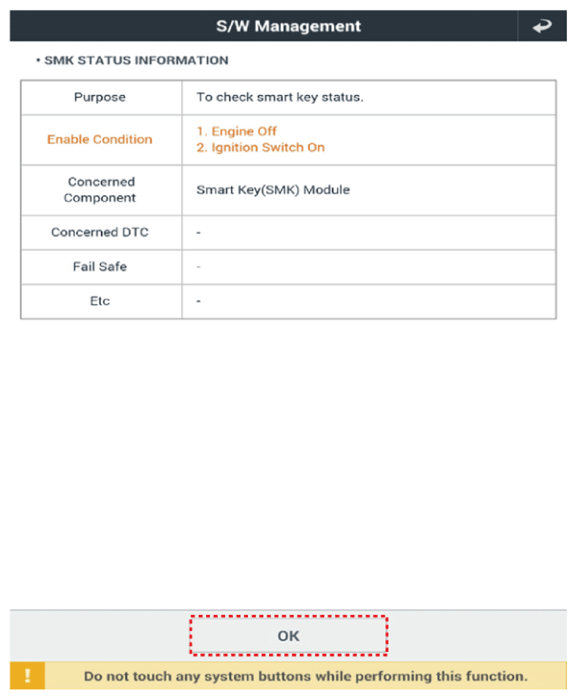

    G13405589Courtesy of KIA MOTORS AMERICA, INC.

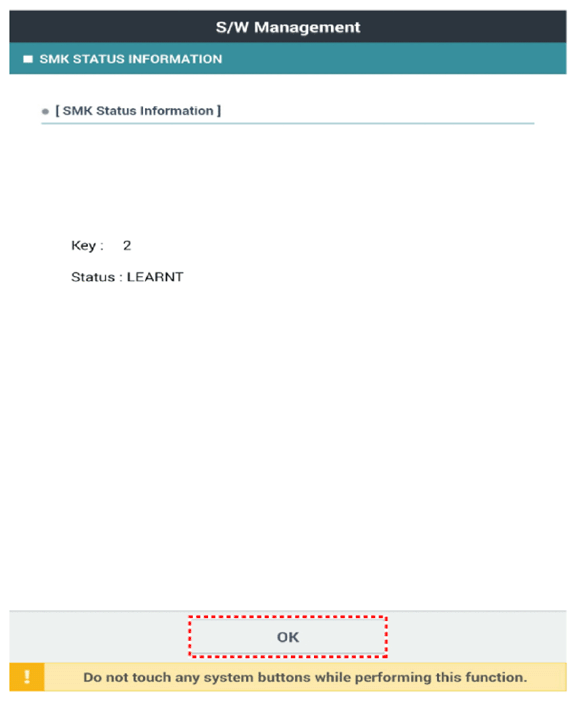

    G13405590Courtesy of KIA MOTORS AMERICA, INC.
