Repair Procedures: Removal

  1. Disconnect the negative battery terminal.
  2. Remove the glove box housing.

    (Refer to Body - "GLOVE BOX HOUSING ")

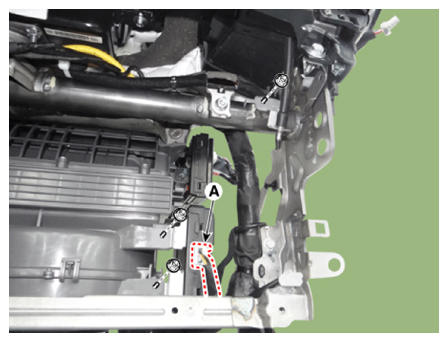

  3. Disconnect the body control module connector (A) after loosening the mounting nuts.
    G13405161Courtesy of KIA MOTORS AMERICA, INC.

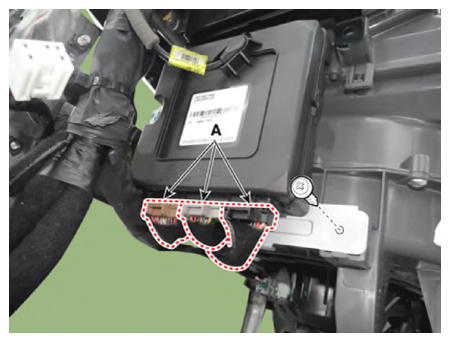

  4. Disconnect the body control module connectors (A) after loosening the mounting screw.
    G13405162Courtesy of KIA MOTORS AMERICA, INC.

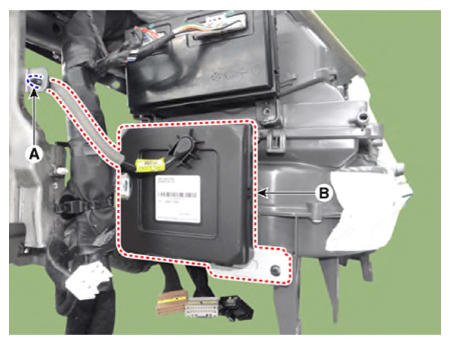

  5. Remove the fixing clip (A) from the body control module antenna.
  6. Remove the body control module (BCM) (B).
    G13405163Courtesy of KIA MOTORS AMERICA, INC.
