Repair Procedures: Removal: Notes

  1. Disconnect the negative (-) battery terminal.
  2. Remove the steering wheel assembly.

    (Refer to Steering System - "STEERING WHEEL ")

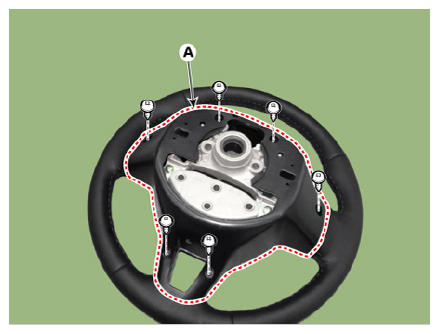

  3. Remove the steering back cover (A) after loosening the mounting screws.
    G13403242Courtesy of KIA MOTORS AMERICA, INC.
  4. Disconnect the steering wheel remote control connector (A).
