Repair Procedures: Removal
- Turn ignition switch OFF and disconnect the battery negative (-) terminal.
- Remove the front bumper cover.
(Refer to Body - "FRONT BUMPER ")

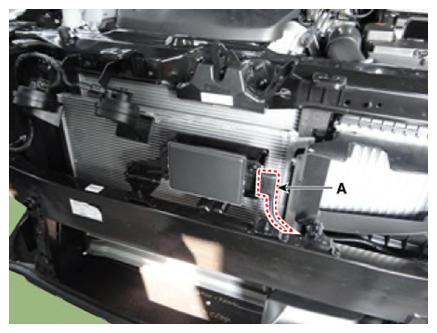

- ASCC radar connector (A).

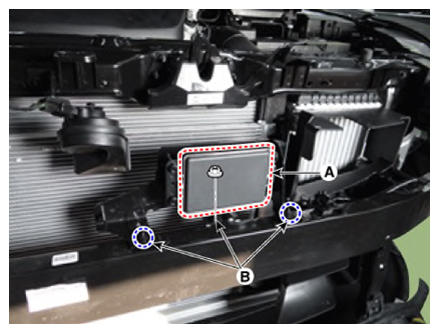

- Remove the ASCC radar (A) after loosening the mounting nuts (B).
