Vehicle S/W Management

Inspection Condition Inspection Procedure Reference
  1. BCW radar calibration.
  2. Ignition "ON".
  1. Connect KDS to "Data Link Connector (DLC)".
  2. Select "Vehicle S/W Management" with KDS.
  3. Select "BCW Radar Calibration" under "Vehicle S/W Management".
 Figures 1 to 5 below

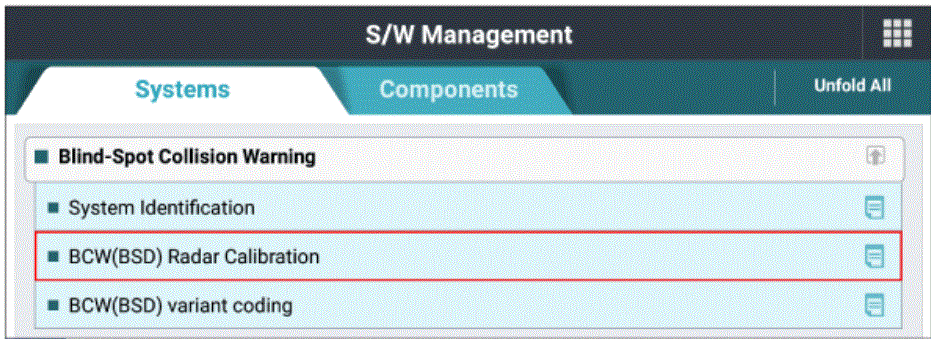

G00599139Courtesy of KIA MOTORS AMERICA, INC.

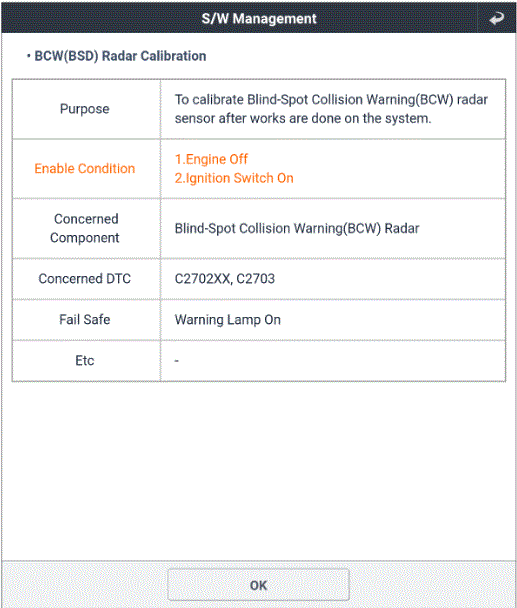

G00599140Courtesy of KIA MOTORS AMERICA, INC.

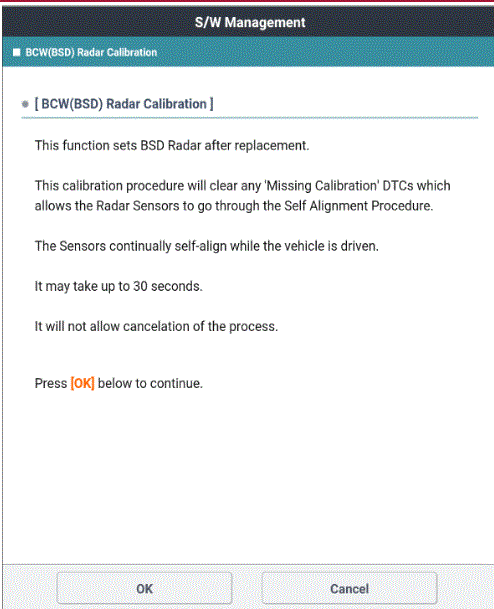

G00599141Courtesy of KIA MOTORS AMERICA, INC.

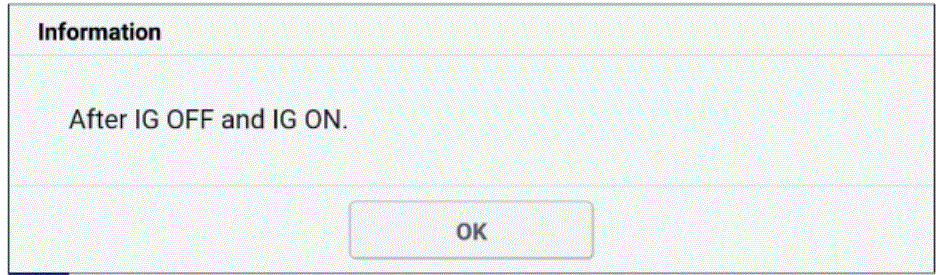

G00599142Courtesy of KIA MOTORS AMERICA, INC.

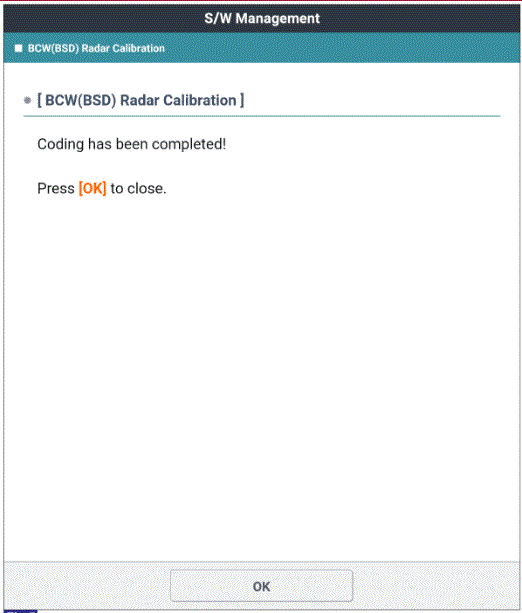

G00599143Courtesy of KIA MOTORS AMERICA, INC.
