Service Point Target Auto Calibration (SPTAC) Procedure

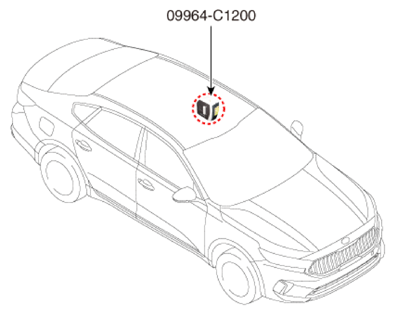

  1. Install the SST (09964-C1200) on the roof center above the vehicle's front windshield.
    G13405835Courtesy of KIA MOTORS AMERICA, INC.

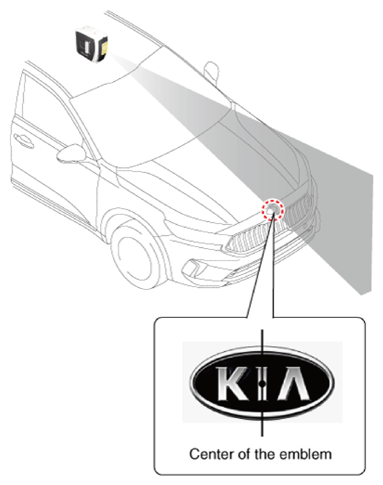

  2. Have the laser illuminate starting from the roof center and to passing through the emblem center.
    G13405836Courtesy of KIA MOTORS AMERICA, INC.

    Information

    The level laser must be set to 'ON' and the holding (locking) function is not used.

  3. Place the calibration target (09890-3V100) so that it adheres by 0 cm to the bumper front. (max. tolerance: 5 cm)

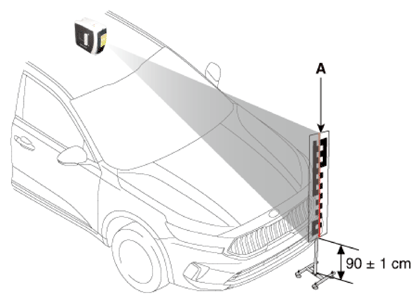

  4. Set the calibration target height to 90 ± 1 cm (35.43 ± 0.39 in.) from the ground and align the center of calibration target with center line (A) of laser beam.
    G13405837Courtesy of KIA MOTORS AMERICA, INC.
    NOTE: The vehicle horizontal plane shall be completely parallel to the target horizontal plane (0 degree).
    • Align the calibration target (09890-3V100) referring to the below tolerance angle.

        L/R torsion F/B gradient L/R gradient
      Tolerance angle ± 10° ± 5° ± 1°
    • Mounting area must not have cross hatch patterns or textual markings near the target.
    • Target should be well lit for optimal performance using non-fluctuating illumination. There shall be no continuous shadows cast on the target.
    • The light should be directed toward the target front and the target front should be brighter than the target rear and target.

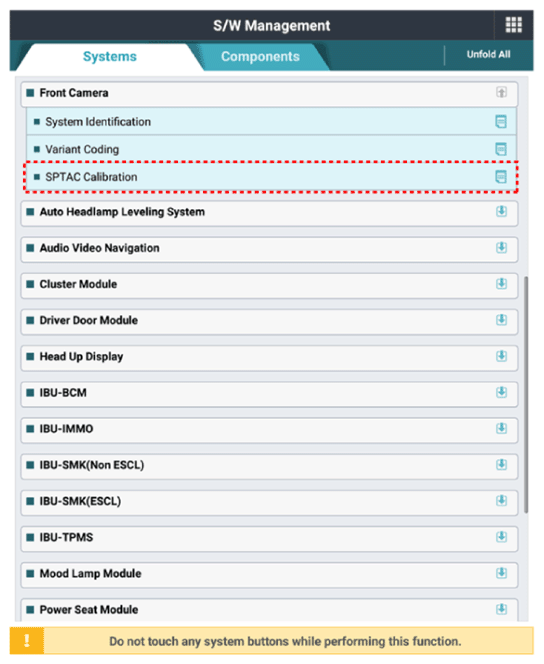

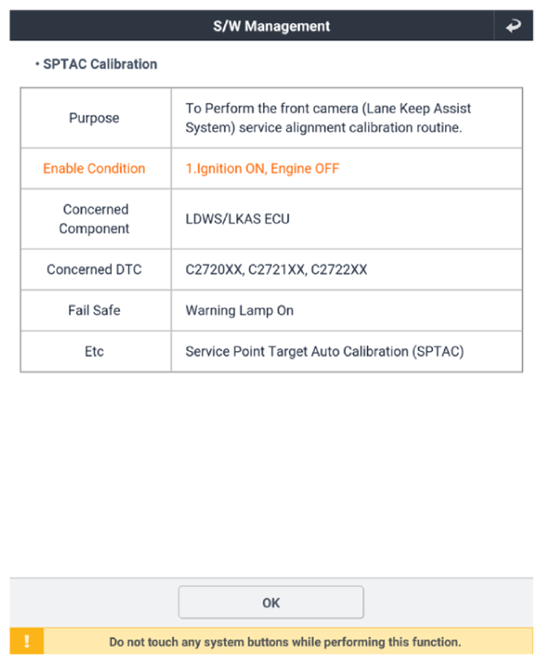

  5. Perform the "SPTAC Calibration" using the KDS.
    G13405839Courtesy of KIA MOTORS AMERICA, INC.
    G13405840Courtesy of KIA MOTORS AMERICA, INC.

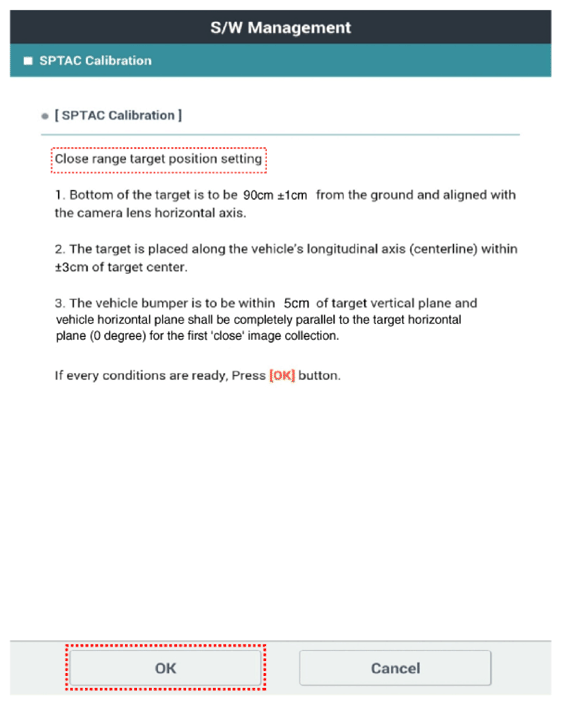

  6. Perform the short-distance calibration by selecting the "OK" message on the KDS after checking the calibration target location.
    G13405841Courtesy of KIA MOTORS AMERICA, INC.

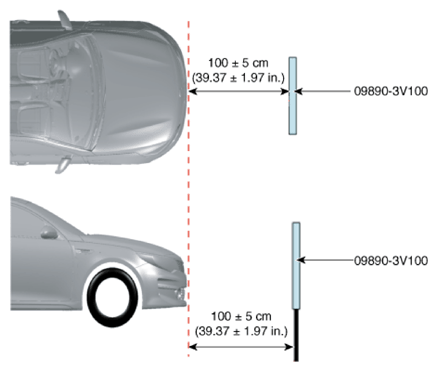

  7. Move the calibration target (09890-3V100) at 100 cm (39.37 in.) from the bumper. [max. tolerance: 5 cm (1.97 in.)]
    G13405842Courtesy of KIA MOTORS AMERICA, INC.
  8. Align the center of calibration target with center line (A) of laser beam.
    G13405843Courtesy of KIA MOTORS AMERICA, INC.
    NOTE: The vehicle horizontal plane shall be completely parallel to the target horizontal plane (0 degree).
    • Align the calibration target (09890-3V100) referring to the below tolerance angle.

        L/R torsion F/B gradient L/R gradient
      Tolerance angle = 10° ± 5° ± 1°
    • Mounting area must not have cross hatch patterns or textual markings near the target.
    • Target should be well lit for optimal performance using non-fluctuating illumination. There shall be no continuous shadows cast on the target.
    • The light should be directed toward the target front and the target front should be brighter than the target rear and target.

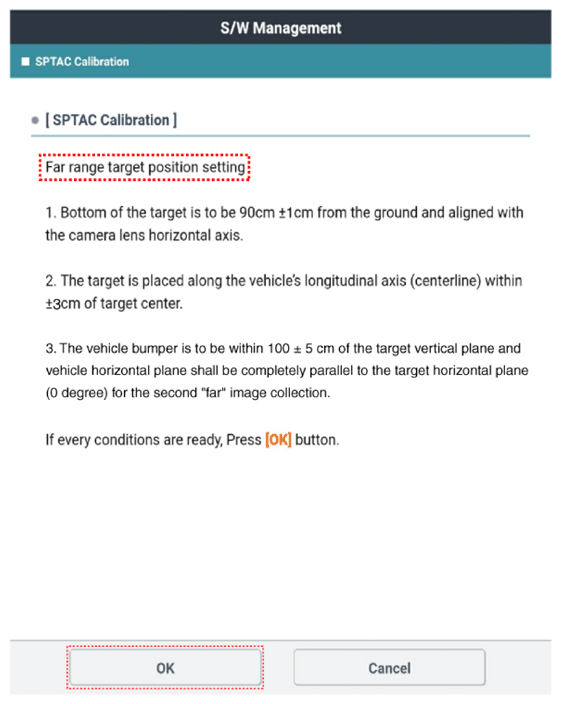

  9. Perform the long-distance calibration by selecting the "OK" message on the KDS after checking the calibration target location.
    G13405845Courtesy of KIA MOTORS AMERICA, INC.
  10. Clear the diagnostic trouble codes (DTC) using the KDS.
  11. Check the DTC and warning lamp.
