Repair Procedures: Removal

  1. You should read the specification information for the front view camera that is installed in the vehicle before replacing it with a new front view camera.

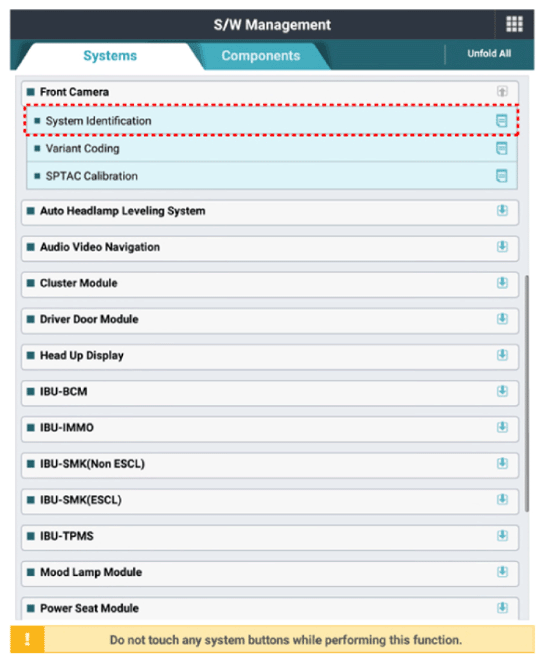

    1. Connect the cable of Diagnostic tool to the data link connector in driver side crash pad lower panel, and turn on the Diagnostic tool.
    2. Select the 'S/W Management' and 'Car model'.
    3. Select "Front View Camera" and "System Identification".
      G13405827Courtesy of KIA MOTORS AMERICA, INC.
  2. Disconnect the negative (-) battery terminal.

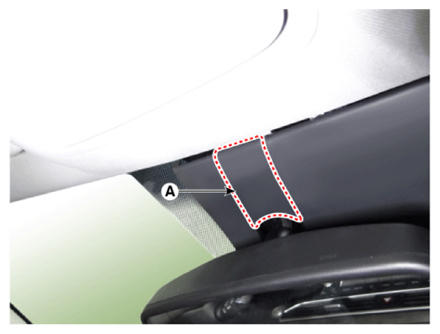

  3. Remove the inside rear view mirror cover (A).
    G13405828Courtesy of KIA MOTORS AMERICA, INC.

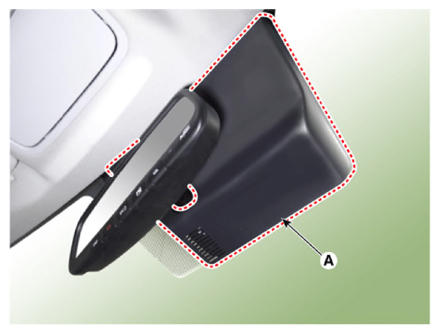

  4. Remove the front camera cover (A).
    G13405829Courtesy of KIA MOTORS AMERICA, INC.

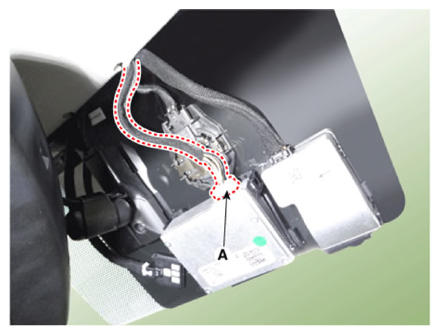

  5. Disconnect the front view camera connector (A).
    G13405830Courtesy of KIA MOTORS AMERICA, INC.

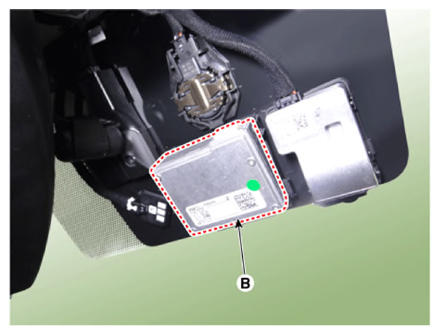

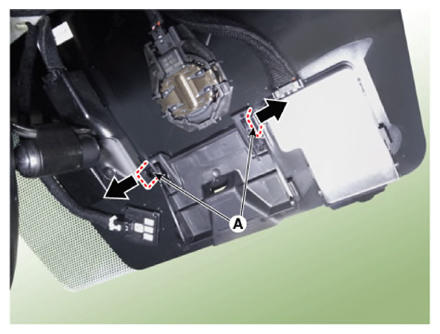

  6. Separate the fixed points (A) of coupler, remove the front view camera (B).
    NOTE: When separate the fixed points (A), be careful not to damage it.
    G13405831Courtesy of KIA MOTORS AMERICA, INC.
    G13405832Courtesy of KIA MOTORS AMERICA, INC.
