Repair Procedures: Inspection

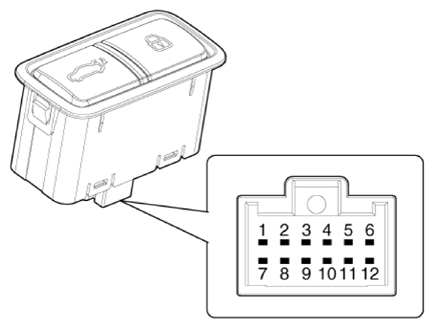

  1. Remove the trunk inner switch.

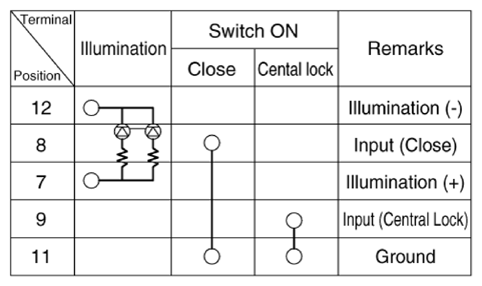

  2. Check for continuity between terminals of the trunk inner switch.
G13405482Courtesy of KIA MOTORS AMERICA, INC.
G13405483Courtesy of KIA MOTORS AMERICA, INC.
