Repair Procedures: Inspection: Notes

  1. Disconnect the power latch and cinching actuator connectors.

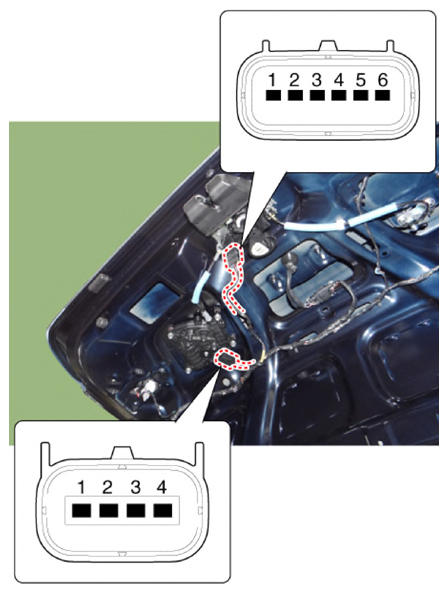

    G13405473Courtesy of KIA MOTORS AMERICA, INC.
  2. Connect the power latch terminals directly to battery voltage (12V) and check that the motor operates smoothly.

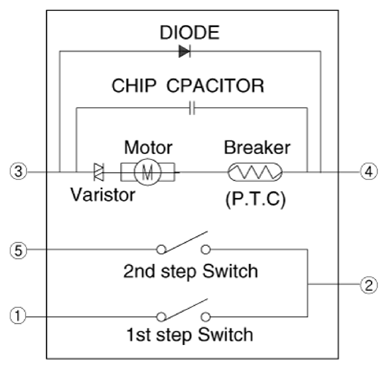

    G13405474Courtesy of KIA MOTORS AMERICA, INC.

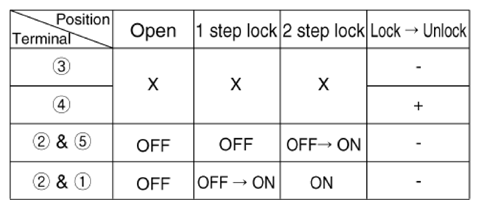

    G13405475Courtesy of KIA MOTORS AMERICA, INC.
  3. Connect the power cinching terminals directly to battery voltage (12V) and check that the motor operates smoothly.
    G13405476Courtesy of KIA MOTORS AMERICA, INC.

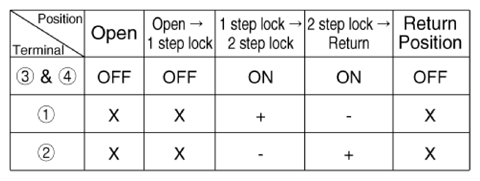

    G13405477Courtesy of KIA MOTORS AMERICA, INC.
