Repair Procedures: Removal

  1. Disconnect the negative battery terminal.
  2. Remove the crash pad lower panel.

    (Refer to Body - "CRASH PAD LOWER PANEL ")

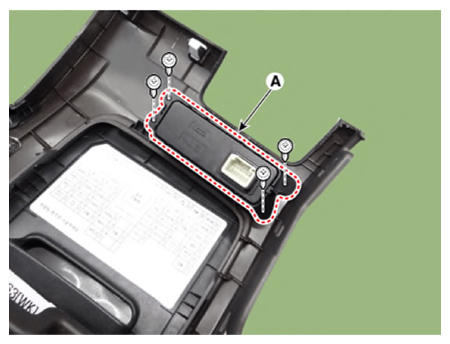

  3. Remove the crash pad lower switch (A) after loosening the mounting screws.
G13405489Courtesy of KIA MOTORS AMERICA, INC.
