Trunk Open Switch

  1. Disconnect the negative battery terminal.
  2. Remove the trunk lid trim.

    (Refer to Body - "TRUNK LID TRIM ")

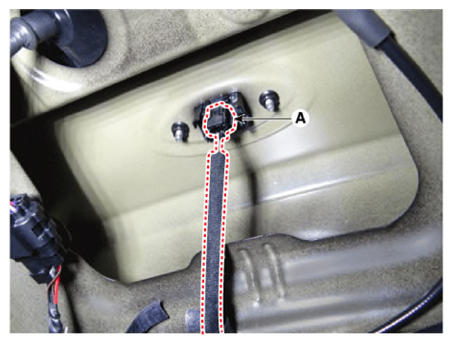

  3. Disconnect the trunk open switch connector (A).
    G13405566Courtesy of KIA MOTORS AMERICA, INC.

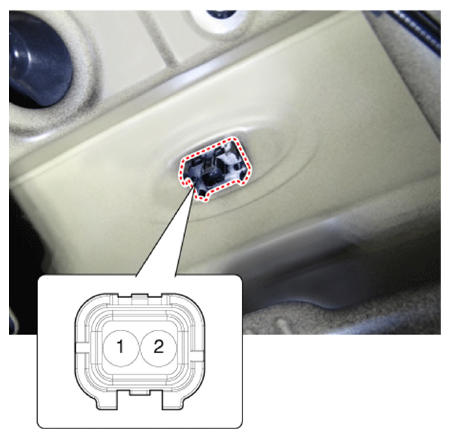

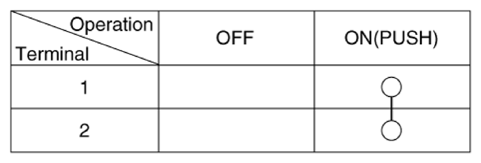

  4. Check for continuity between the terminals.
    G13405567Courtesy of KIA MOTORS AMERICA, INC.
    G13405568Courtesy of KIA MOTORS AMERICA, INC.
