Smart Key Unit (SMK)

  1. Disconnect the negative battery terminal.
  2. Remove the knee airbag (KAB) module.

    (Refer to Restraint - "KNEE AIRBAG (KAB) MODULE ")

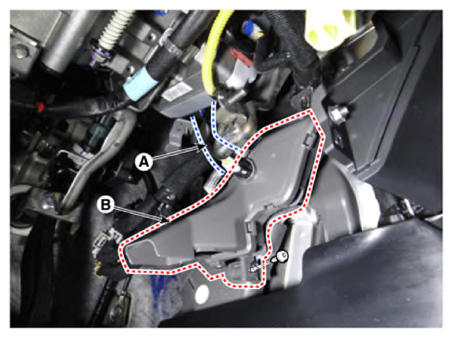

  3. Disconnect the connector (A) from the driver shower duct.
  4. Remove the driver shower duct (B) by loosening the screw.
    G13405557Courtesy of KIA MOTORS AMERICA, INC.

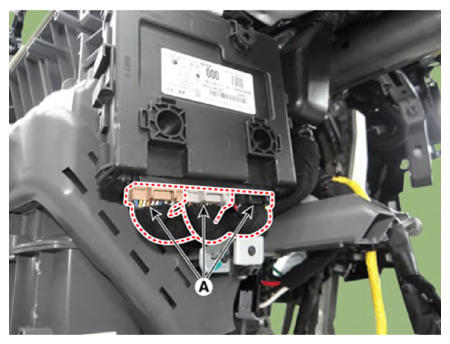

  5. Disconnect the connectors (A) from the smart key unit.
    G13405558Courtesy of KIA MOTORS AMERICA, INC.

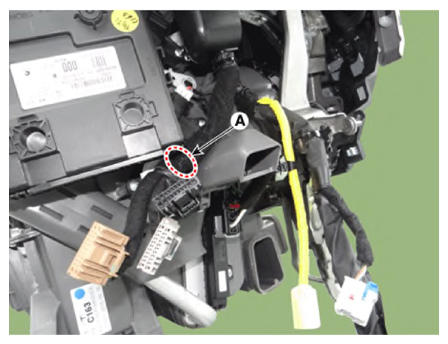

  6. Remove the fixing clip (A) from the smart key unit wiring harness.
    G13405559Courtesy of KIA MOTORS AMERICA, INC.

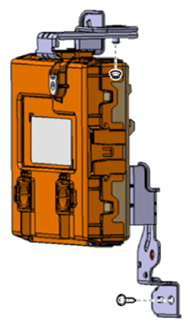

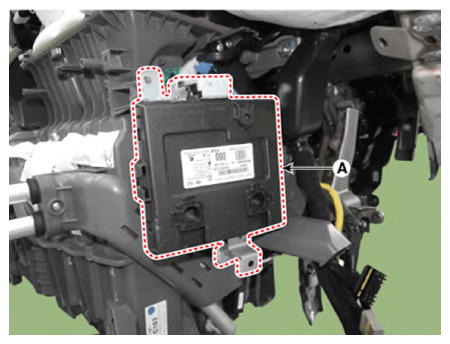

  7. Remove the smart key unit (A) by loosening the screw and nut.
    G13405560Courtesy of KIA MOTORS AMERICA, INC.
