Trunk Open Switch

  1. Disconnect the negative battery terminal.
  2. Remove the trunk lid trim.

    (Refer to Body - "TRUNK LID TRIM ")

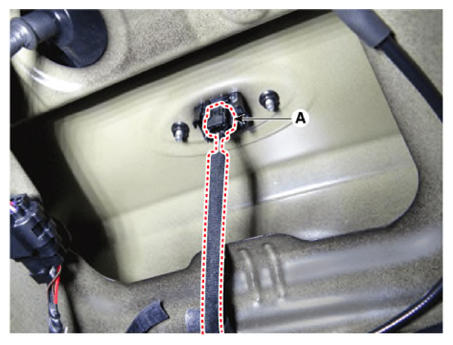

  3. Disconnect the trunk open switch connector (A).
    G13405563Courtesy of KIA MOTORS AMERICA, INC.

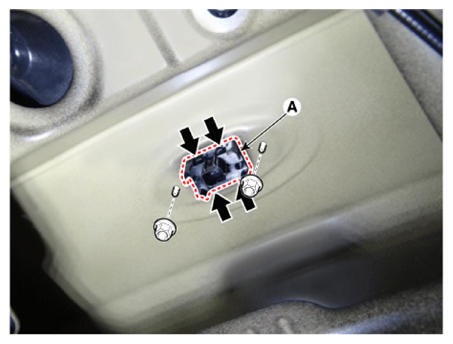

  4. Loosen the trunk open switch mounting nuts.
  5. Remove the trunk open switch (A) by pressing the hooks.
    G13405564Courtesy of KIA MOTORS AMERICA, INC.
