Repair Procedures: Inspection

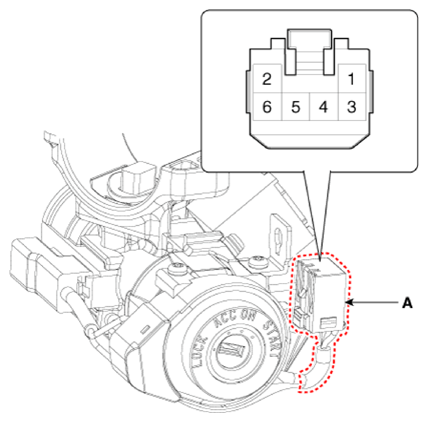

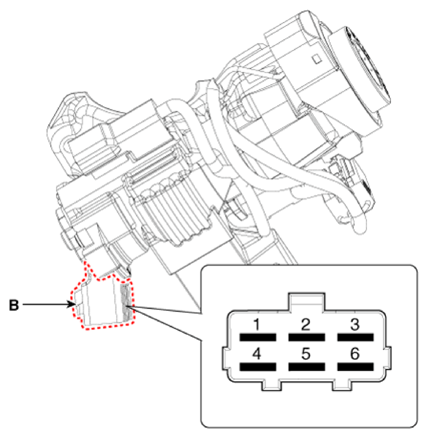

  1. Disconnect the key warning switch connector (A) and ignition switch connector (B) from the steering column.
    G13405246Courtesy of KIA MOTORS AMERICA, INC.
    G13405247Courtesy of KIA MOTORS AMERICA, INC.

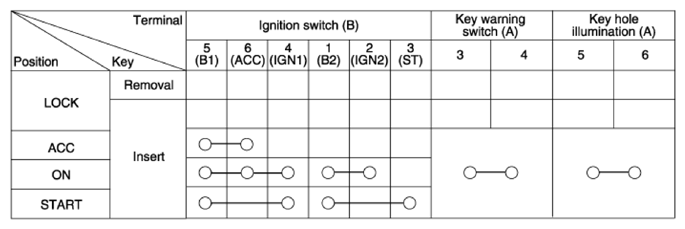

  2. Check for continuity between the terminals.
  3. If continuity is not as specified, replace the switch.
G13405248Courtesy of KIA MOTORS AMERICA, INC.
