Repair Procedures: Removal

CAUTION: Put on gloves to protect your hands.

NOTE: Use seat covers to avoid damaging any surfaces.

Remove the roof side molding.
(Refer to Body Side Moldings - "ROOF SIDE MOLDING ")
Remove the roof trim.
(Refer to Roof Trim - "ROOF TRIM ASSEMBLY ")

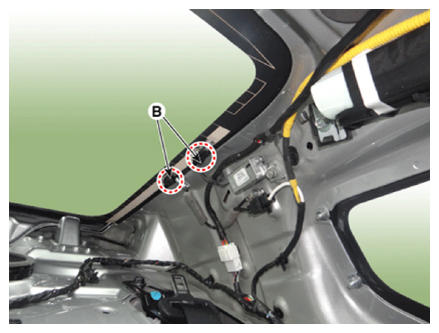

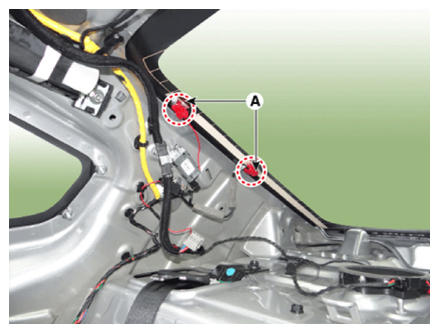

Disconnect the heater connector (A) and antenna connector (B).

Courtesy of KIA MOTORS AMERICA, INC.

Courtesy of KIA MOTORS AMERICA, INC.

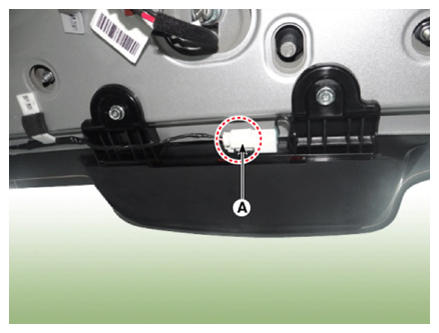

Disconnect the high mounted stop lamp connector (A).

Courtesy of KIA MOTORS AMERICA, INC.

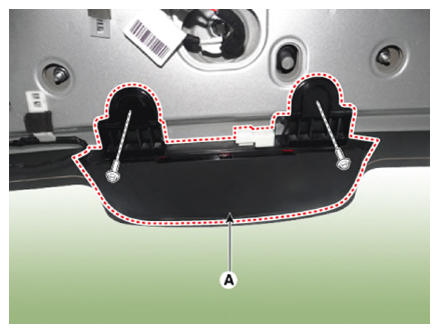

Remove the high mounted stop lamp (A) after loosening the bolts.

Courtesy of KIA MOTORS AMERICA, INC.
Spray WD-40 on the side of rear window glass.

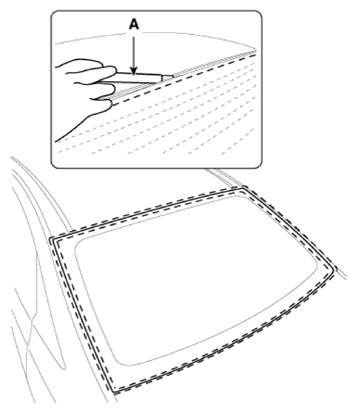

Cut out the adhesive using the cutter (A).
Information
- Use a cutter with a blade length between 8-12 inches.
Courtesy of KIA MOTORS AMERICA, INC.

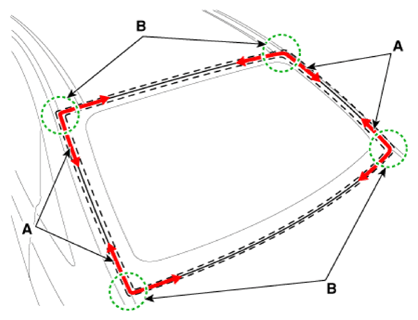

Cut off the sealant on the edge (B) while pulling the piano wire (A) left and right.
CAUTION:
- Put on gloves to protect your hands.
- Be careful not to burn your hands as excessive heat may be generated when working on wires.
- Be careful not to break the piano wire.
Courtesy of KIA MOTORS AMERICA, INC.
If the piano wire (A) is visible outside the chassis, push it back into the chassis.

Courtesy of KIA MOTORS AMERICA, INC.

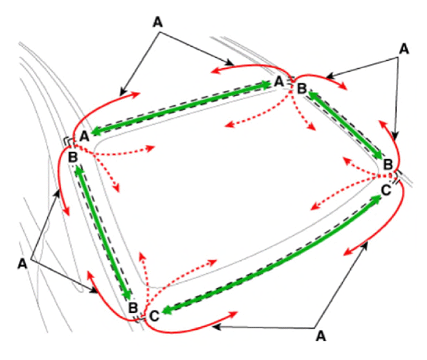

Cut off the sealant on (A-A), (B-B), (C-C), while pulling the piano wire (A) left and right.
CAUTION:
- Put on gloves to protect your hands.
- Be careful not to burn your hands as excessive heat may be generated when working on wires.
- Be careful not to break the piano wire.
Courtesy of KIA MOTORS AMERICA, INC.

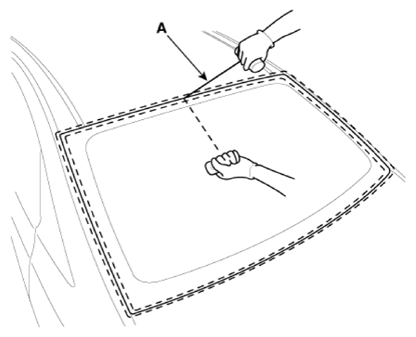

Remove the rear window glass (A).
NOTE:
- When removing and installing the rear window glass, work in a group of two or more.
Courtesy of KIA MOTORS AMERICA, INC.
