Removal And Installation

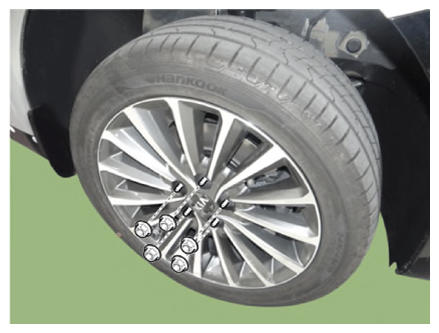

1. Remove the wheel and tire.

   Tightening torque:

   88.2 - 107.8 N.m (9.0 - 11.0 kgf.m, 65.0 - 79.5 lb.ft)

   Courtesy of KIA MOTORS AMERICA, INC.

   CAUTION: Be careful not to damage the wheel nuts when removing the wheel and tire.

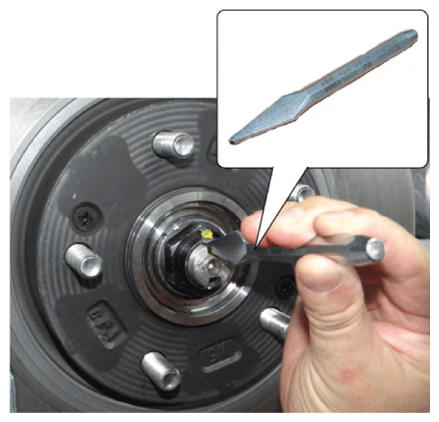

2. By hammering on a chisel, unlock the driveshaft lock hub nut caulking.

   Courtesy of KIA MOTORS AMERICA, INC.

   NOTE: If there is screw thread (A) on the end of the nut, unlock the caulking by using a chisel and then loosen the nut to prevent damaging driveshaft screw thread.

   Courtesy of KIA MOTORS AMERICA, INC.

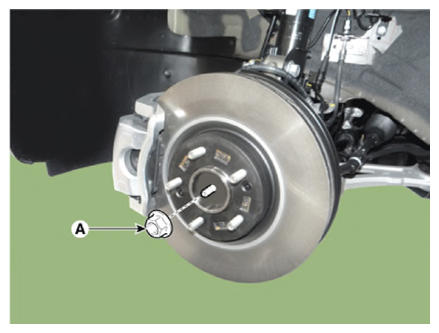

3. Remove the caulking nut (A) from the front axle.

   Tightening torque:

   274.6 - 294.2 N.m (28.0 - 30.0 kgf.m, 202.5 - 217.0 lb.ft)

   Courtesy of KIA MOTORS AMERICA, INC.

   NOTE:

   • The driveshaft lock nut must be replaced with new one. When replacing the drive lock hub nut, use only the nut with screw thread (A) on the end.

     Courtesy of KIA MOTORS AMERICA, INC.

     Courtesy of KIA MOTORS AMERICA, INC.

   • Tighten the driveshaft lock hub nut to the specified tightening torque, and caulk by using a chisel and hammer.
   • If there are two key seats, perform on all two seats.

     Caulking depth (A)  : 1.5 mm (0.0591 in)

     Courtesy of KIA MOTORS AMERICA, INC.

4. Remove the front caliper.

   (Refer to Brake System - "FRONT DISC BRAKE ")

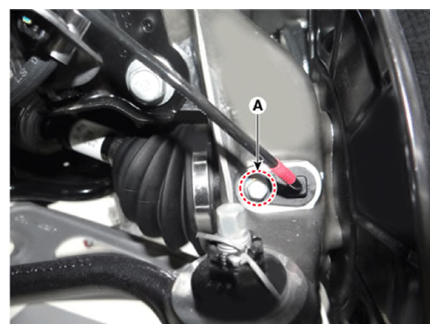

5. Remove the wheel speed sensor bolt (A).

   Tightening torque:

   6.8 - 10.7 N.m (0.7 - 1.1 kgf.m, 5.0 - 7.9 lb.ft)

   Courtesy of KIA MOTORS AMERICA, INC.

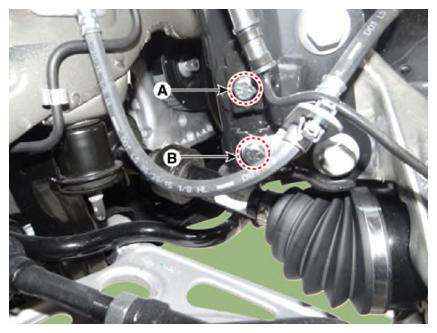

6. Remove the wheel speed sensor bracket bolt (A) and brake hose bracket bolt (B).

   Tightening torque:

   8.8 - 13.7 N.m (0.9 - 1.4 kgf.m, 6.5 - 10.1 lb.ft)

   Courtesy of KIA MOTORS AMERICA, INC.

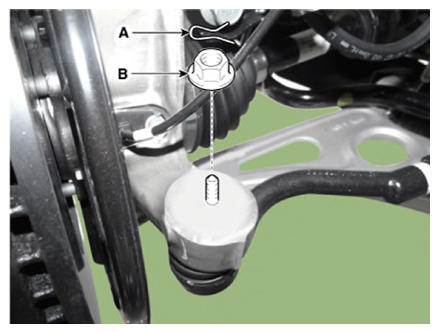

7. Remove the tie rod end pin (A) and nut (B).

   Tightening torque:

   88.2 - 107.8 N.m (9.0 - 11.0 kgf.m, 65.0 - 79.5 lb.ft)

   Courtesy of KIA MOTORS AMERICA, INC.

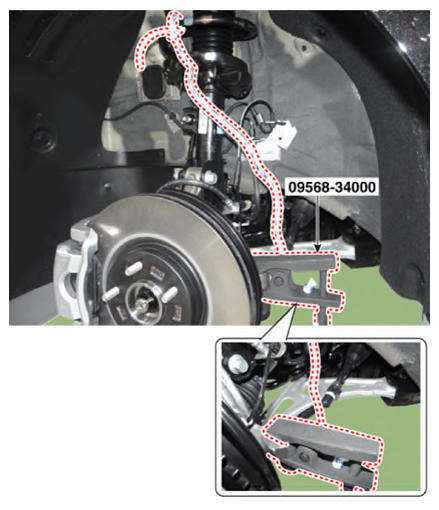

8. Remove the knuckle by using the SST (09568-34000).

   Courtesy of KIA MOTORS AMERICA, INC.

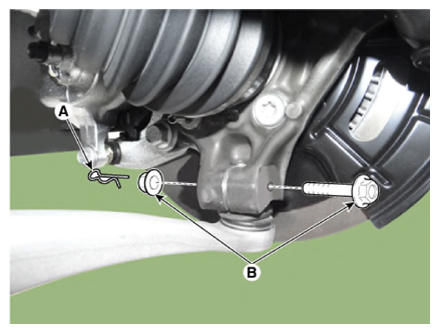

9. Loosen the pin (A), and then remove the lower arm nut (B).

   Tightening torque:

   98.0 - 117.6 N.m (10.0 - 12.0 kgf.m, 72.3 - 86.7 lb.ft)

   Courtesy of KIA MOTORS AMERICA, INC.

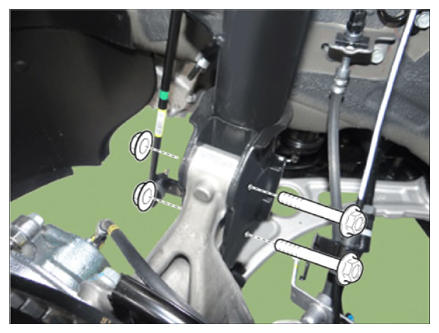

10. Loosen the strut bolt and then remove the front axle.

    Tightening torque:

    196.1 - 215.7 N.m (20.0 - 22.0 kgf.m, 144.7 - 159.1 Ib.ft)

    Courtesy of KIA MOTORS AMERICA, INC.

Disassembly

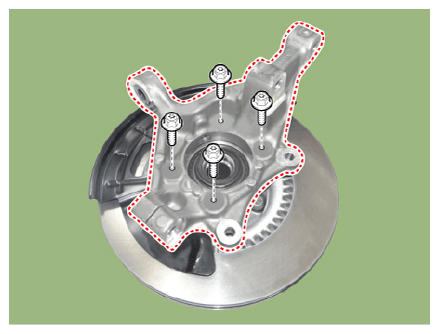

1. Remove the hub assembly mounting bolts from the knuckle.

   Tightening torque:

   88.2 - 107.8 N.m (9.0 - 11.0 kgf.m, 65.0 - 79.5 lb.ft)

   Courtesy of KIA MOTORS AMERICA, INC.

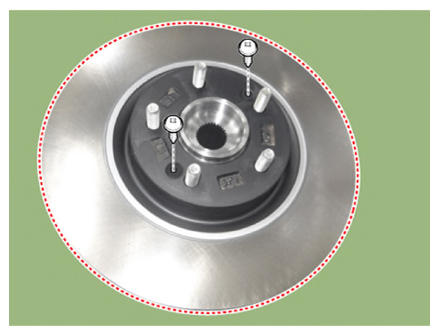

2. Loosen the screw, and then remove the brake disc.

   Courtesy of KIA MOTORS AMERICA, INC.

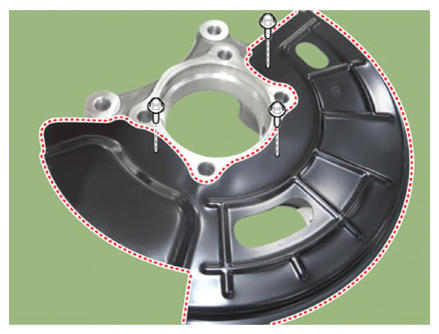

3. Remove the dust cover bolt from the knuckle.

   Courtesy of KIA MOTORS AMERICA, INC.

4. Installation is the reverse of removal.
