General Inspection: Notes

(Refer to Charging System - "BATTERY ")

Alternator Fuse

1. Check the alternator fuse for continuity.

   Courtesy of KIA MOTORS AMERICA, INC.

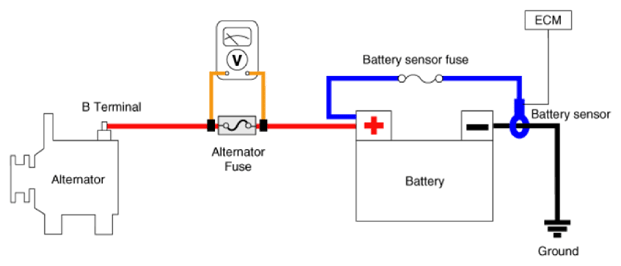

2. Measure the voltage as shown in the image below.

   Standard value  : Approximately 0 V

   Courtesy of KIA MOTORS AMERICA, INC.

3. If the alternator fuse is blown, replace it as in the procedure below:
   1. Turn ignition switch OFF and disconnect the battery negative (-) terminal.
   2. Remove the battery positive (+) cable mounting nuts (A).
   3. Remove the battery positive (+) cable (B).
   4. Replace the alternator fuse or battery cable.
   5. Install in the reverse order of removal.
