Signal Waveform & Data

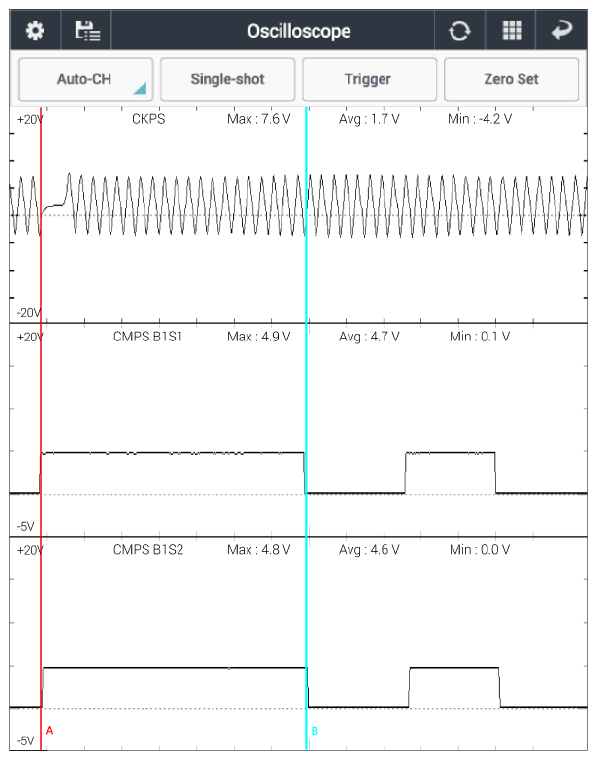

G13408867Courtesy of KIA MOTORS AMERICA, INC.

Channel A: CKPS & CMPS synchronization - There are about 20 tooth between the CKPS missing tooth and CMPS signal.

Channel B: CKPS & CMPS synchronization - There are about 20 tooth between the CKPS missing tooth and CMPS signal.
