Engine Control System Diagnosis (6 Of 6)
>>
DTC P2298-00: O2 Sensor Out of Range During Deceleration - (Bank 2 Sensor 1)
>>
Specification
>>
Signal Waveform & Data
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.

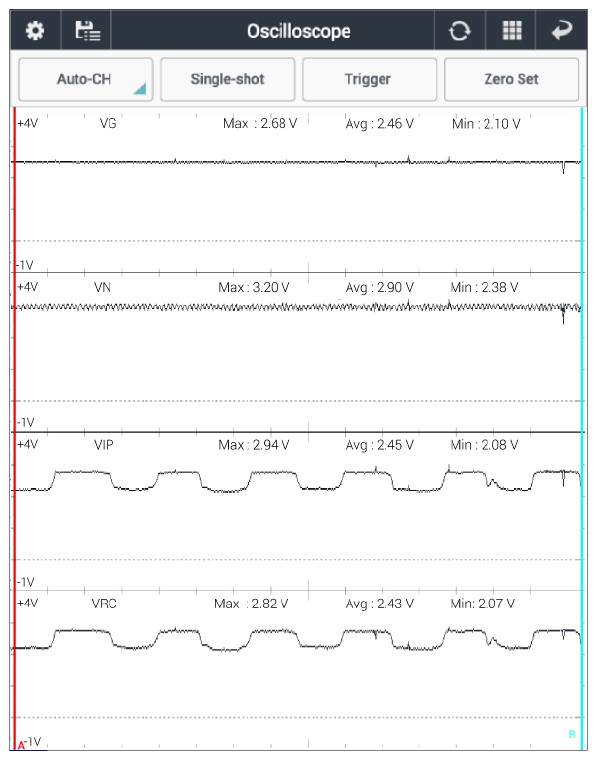

Signal Waveform & Data
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
