Repair Procedures: Replacement

WARNING: This page is about a different car, the 2020 Kia Niro. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION: Wear gloves to protect hands from injury.

Information

Work in a group of two when removing and installing the tailgate.

Remove the tailgate trim (A).
(Refer to Tailgate - "TAILGATE TRIM ")
Remove the rear spoiler.
(Refer to Body Side Molding - "REAR SPOILER ")

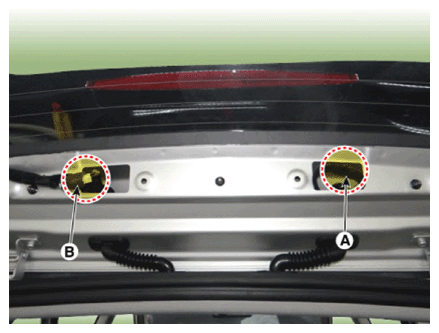

Disconnect the washer nozzle hose (A) and high mounted stop lamp connector (B).

Courtesy of KIA MOTORS AMERICA, INC.

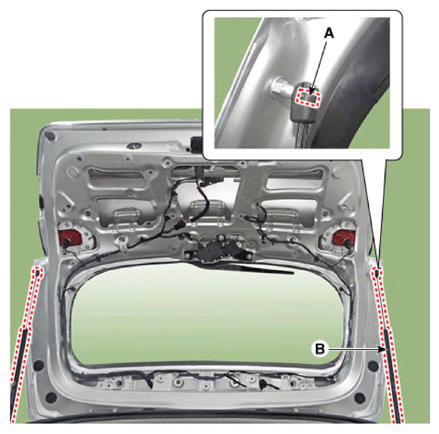

Using a screwdriver, lift the socket clips (A) up slightly on both ends of the tailgate lifter (B).

Courtesy of KIA MOTORS AMERICA, INC.

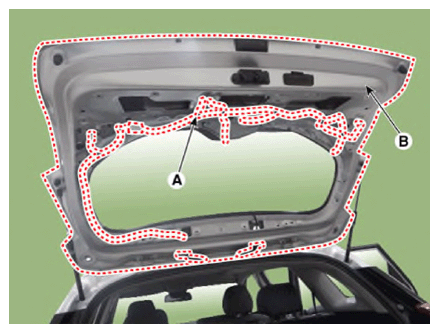

Disconnect the connectors and tailgate wiring harness (A).
Remove the tailgate assembly (B) after loosening the mounting bolts.
Tightening torque:

21.6 - 26.5 N.m (2.2 - 2.7 kgf.m, 15.9 - 19.5 lb.ft)

Courtesy of KIA MOTORS AMERICA, INC.
Install in the reverse order of removal.
Information
- Make sure that the tailgate locks/unlocks and opens/closes properly.
- Adjust the tailgate alignment.
- Make sure the connectors are connected in properly.
- Replace any damaged clips.
