Schematic Diagrams

WARNING: This page is about a different car, the 2020 Kia Niro. However, it is still accessible from the selected car via links, so may be relevant.

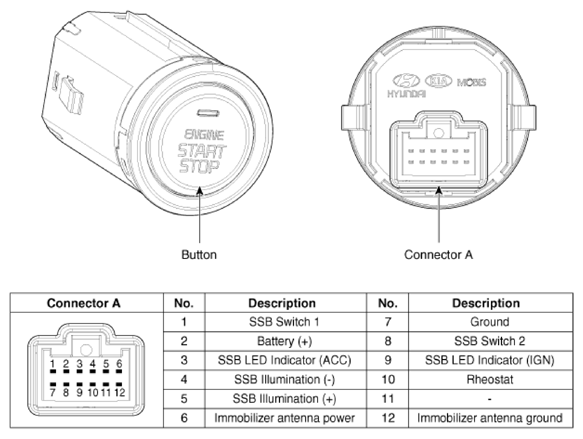

G13350905Courtesy of KIA MOTORS AMERICA, INC.
