Repair Procedures: Installation
WARNING: This page is about a different car, the 2020 Kia Niro. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
- Put the vehicle on the level ground.
- Take out heavy luggage from the vehicles' seats or tailgate.
- Set all tires according to the specified pressure.
- Check wheel alignment.
- Check that the front surface of the front radar is clean.
- Install in the reverse order of removal.
Information
Check the installation angle of front radar before installing the front bumper assembly.
(Refer to Front Radar Unit - "INSPECTION ")
- If replaced the front radar with a new one, perform variant coding procedure by using the KDS.

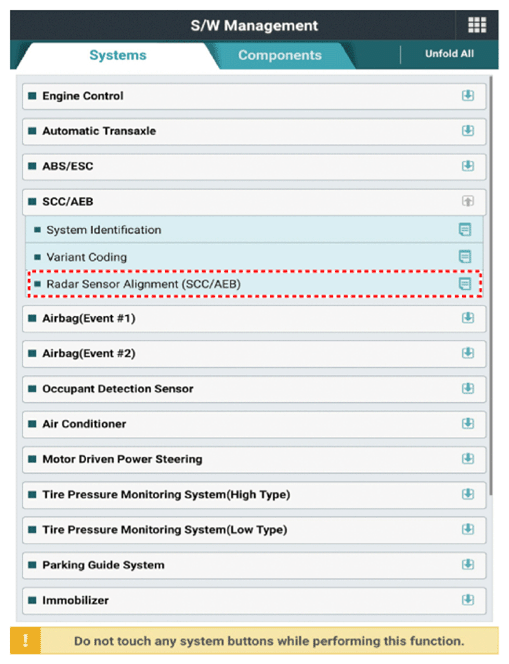

- Perform radar alignment procedure by using the KDS.
(Refer to Front Radar Unit - "ADJUSTMENT ")
