FOB Status Check
WARNING:
This page is about a different car, the 2020 Kia Niro. However, it is still accessible from the selected car via links, so may be relevant.
Connect the cable of KDS to the data link connector in driver side crash pad lower panel.

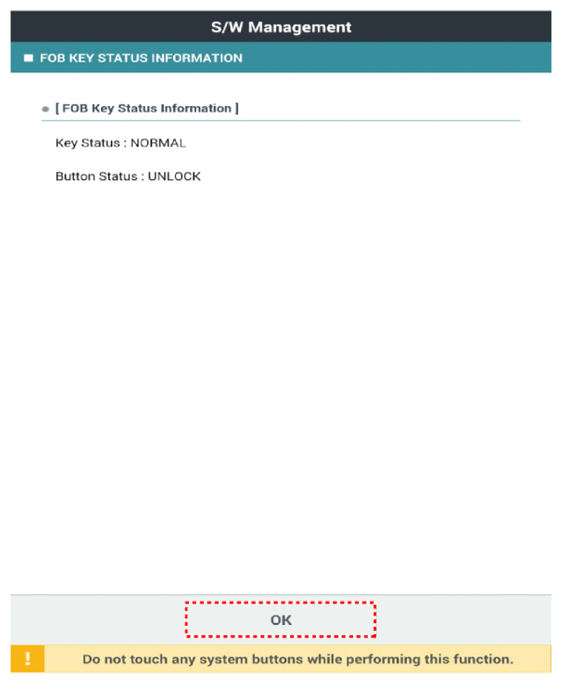

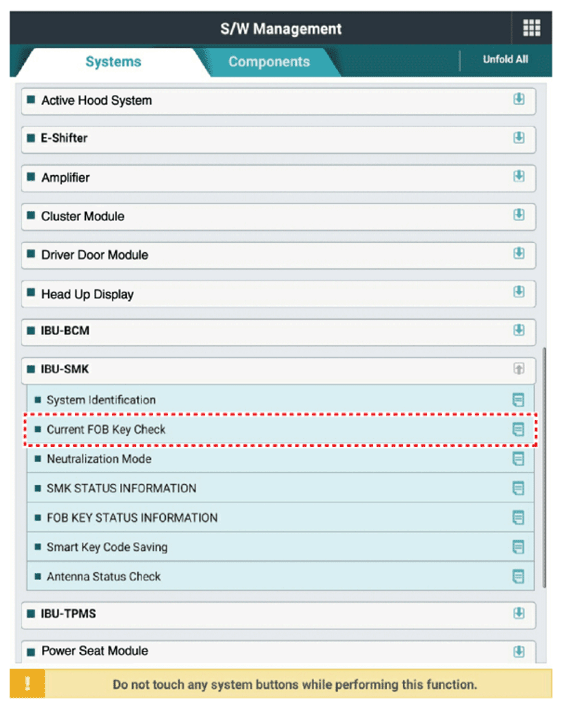

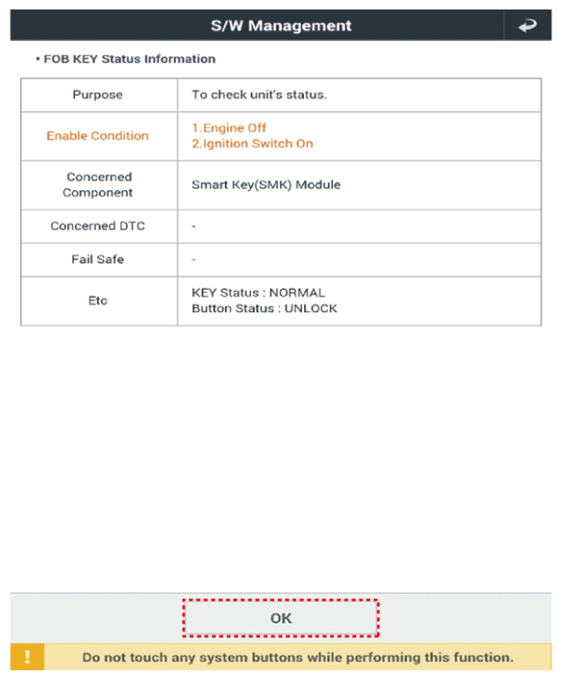

After IG ON, select the "FOB KEY STATUS INFO".
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
