Repair Procedures: Inspection: Buzzer

WARNING: This page is about a different car, the 2020 Kia Niro. However, it is still accessible from the selected car via links, so may be relevant.

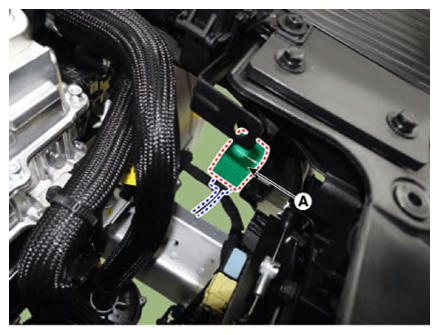

  1. After removing the buzzer (A), disconnect the connector from the buzzer.
    G13351387Courtesy of KIA MOTORS AMERICA, INC.
  2. Test the buzzer by connecting battery power to the terminal 2 and ground the terminal 1.
