Vehicle S/W Management

WARNING: This page is about a different car, the 2020 Kia Niro. However, it is still accessible from the selected car via links, so may be relevant.
Inspection Condition Inspection Procedure Reference
  1. Ignition "ON".
  1. Connect KDS to Data Link Connector (DLC).
  2. Perform "Vehicle S/W Management" of concerned component with KDS.
 Fig.1 to 4

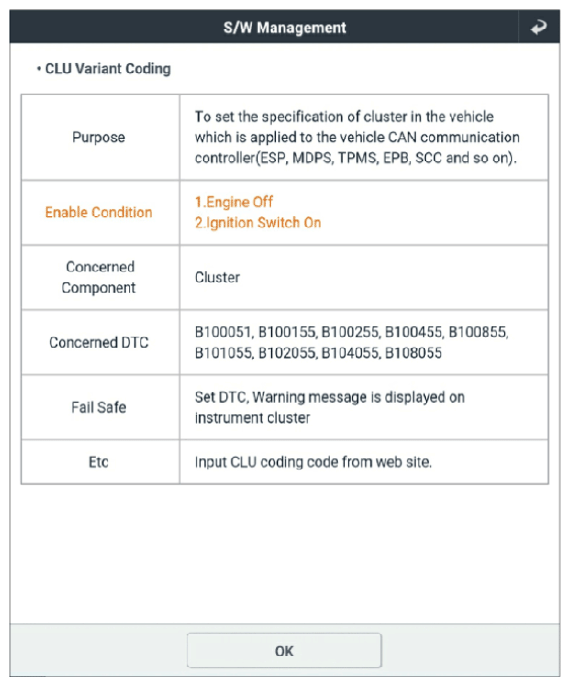

G13354403Courtesy of KIA MOTORS AMERICA, INC.

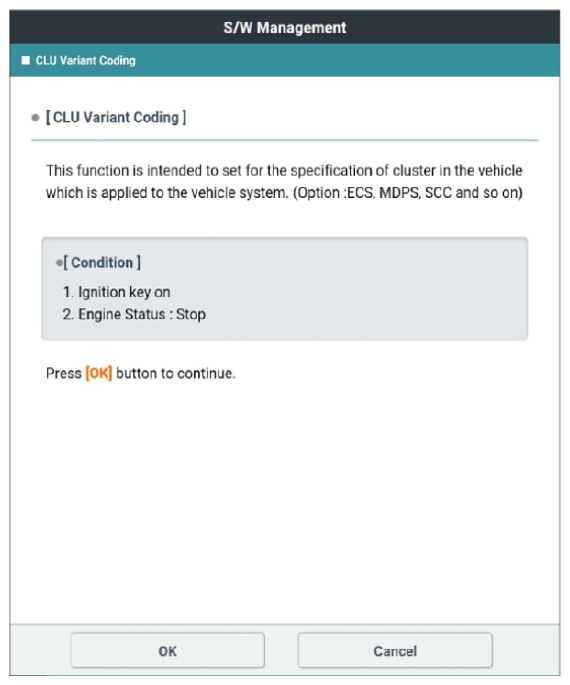

G13354404Courtesy of KIA MOTORS AMERICA, INC.

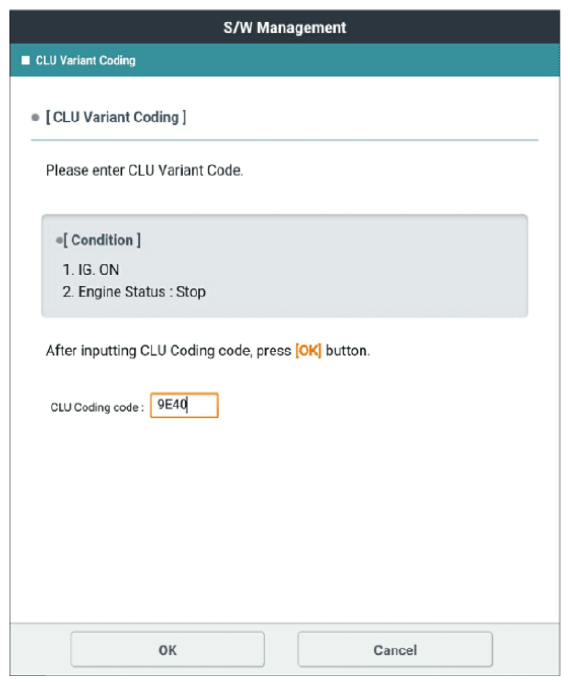

G13354405Courtesy of KIA MOTORS AMERICA, INC.

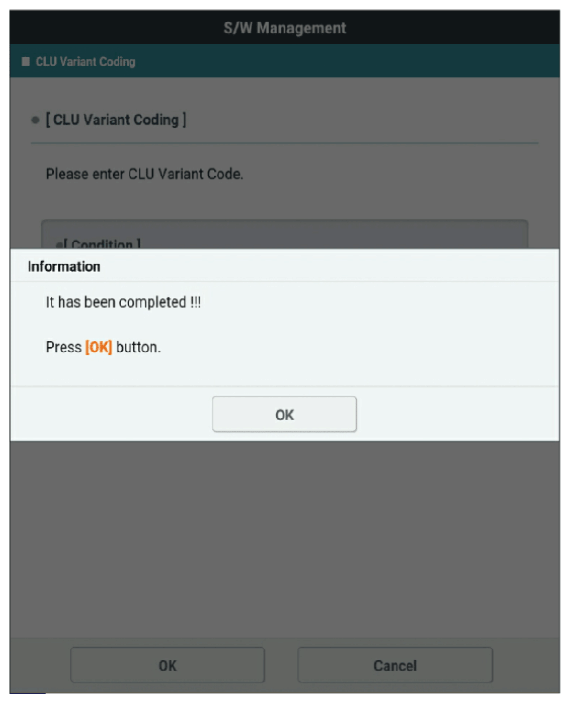

G13354406Courtesy of KIA MOTORS AMERICA, INC.
