Vehicle S/W Management

WARNING: This page is about a different car, the 2020 Kia Niro. However, it is still accessible from the selected car via links, so may be relevant.
Inspection Condition Inspection Procedure Reference
  1. Ignition "ON".
  1. Connect KDS to Data Link Connector (DLC).
  2. Perform "Vehicle S/W Management" of concerned component with KDS.

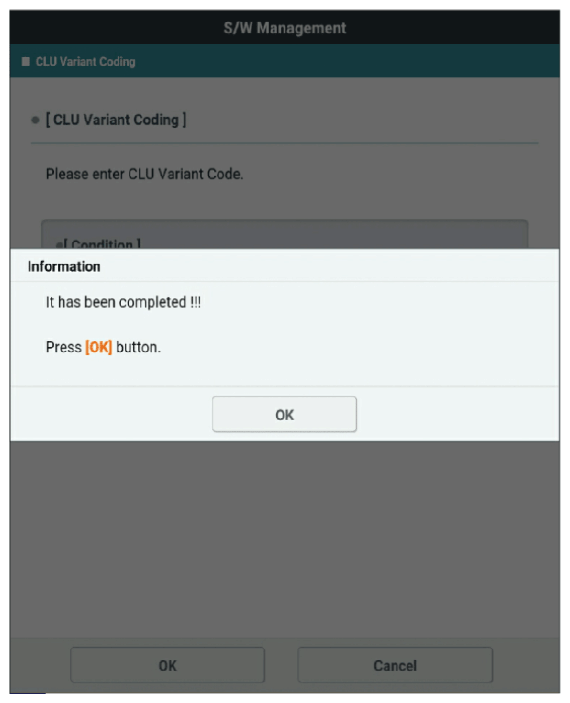

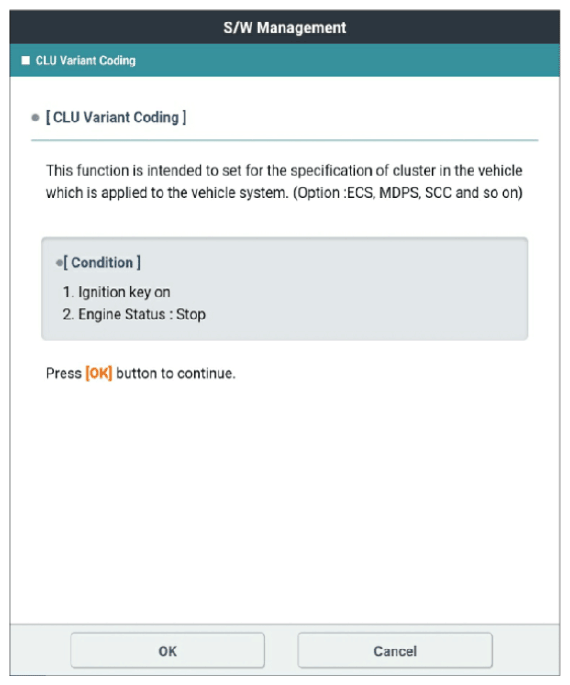

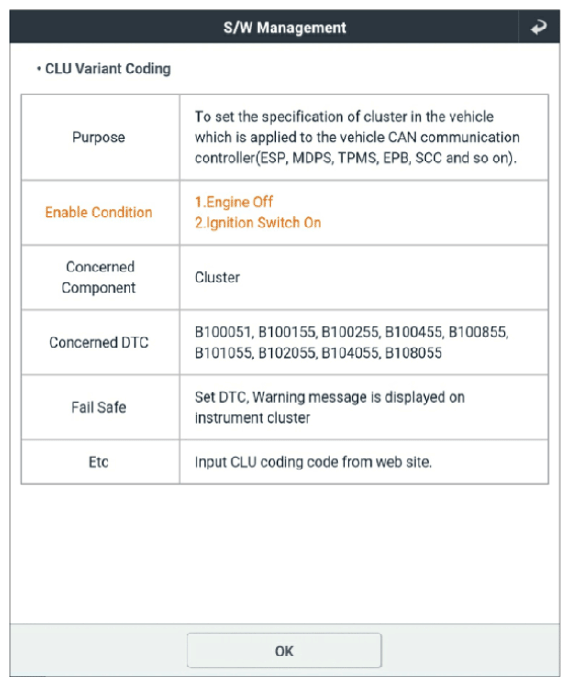

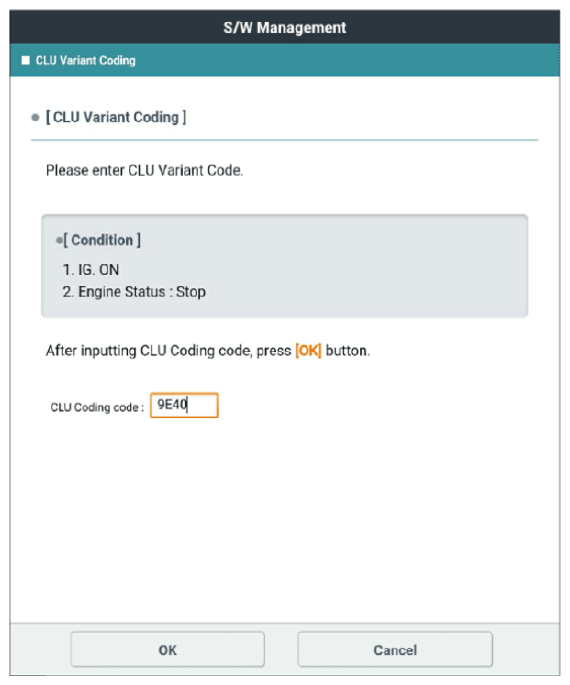

 Fig.1 to 4
G13354451Courtesy of KIA MOTORS AMERICA, INC.
G13354452Courtesy of KIA MOTORS AMERICA, INC.
G13354453Courtesy of KIA MOTORS AMERICA, INC.
G13354454Courtesy of KIA MOTORS AMERICA, INC.
