Components And Components Location: Components

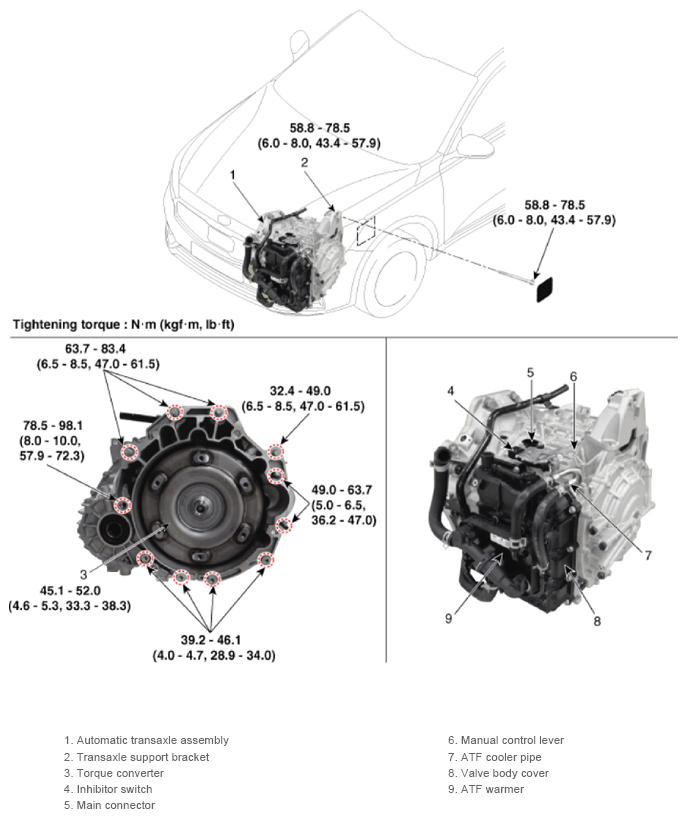

Fig 1: Automatic Transaxle System Components Location With Torque Specification
G13403708Courtesy of KIA MOTORS AMERICA, INC.
