Monitor KDS Data
| Inspection Condition | Inspection Procedure | Reference |
|---|---|---|
|
|

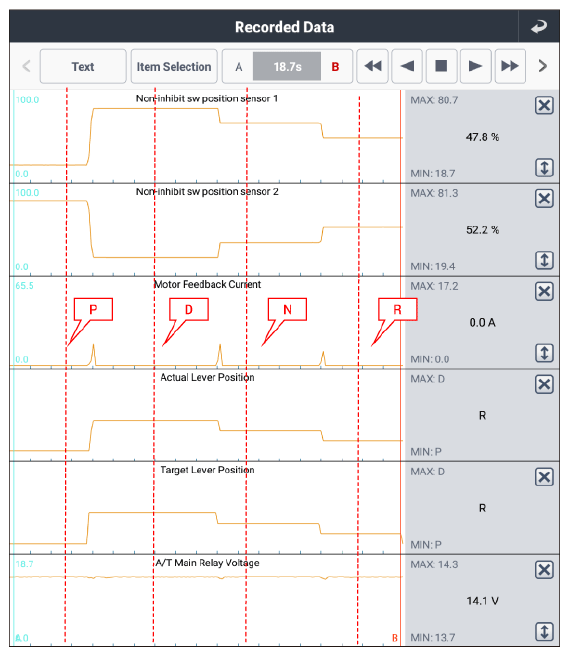

Fig.1 |
Good
- Thoroughly check connectors for looseness, poor connection, bending, corrosion, contamination, deterioration, or damage. Repair or replace as necessary and go to "VERIFICATION OF REPAIR " procedure.
No Good
- P106C14 indicates that alignment between SBW systems is incorrect. Therefore, do not replace the SBW actuator and position sensor and check alignment of the SBW position sensor.
- Go to "Check the alignment of SBW position sensor " procedure.
