Repair Procedures: Disassembly

WARNING: This page is about a different variant/trim than selected.

Remove the alternator.
(Refer to Charging System - "ALTERNATOR ")

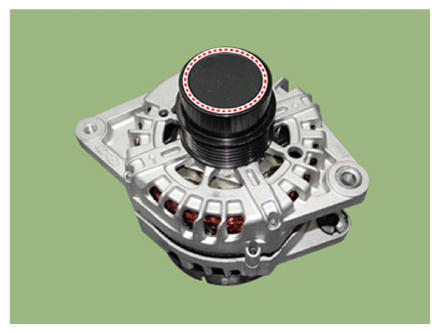

Remove the OAD (Overrunning Alternator Decoupler) cap (A).

Courtesy of KIA MOTORS AMERICA, INC.
NOTE:
- When installing, replace with new OAD cap.

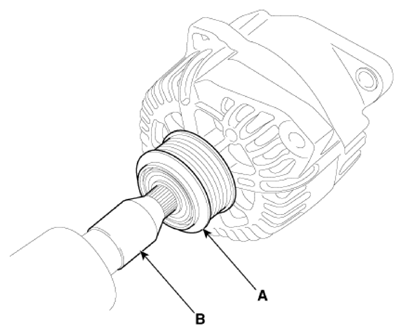

Remove the OAD (Overrunning Alternator Decoupler) pulley (A) using the special tool.

Courtesy of KIA MOTORS AMERICA, INC.

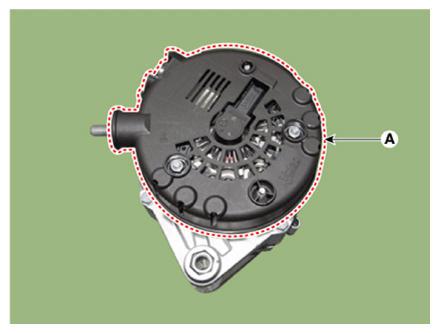

Remove the rear cover (A) after removing nuts.

Courtesy of KIA MOTORS AMERICA, INC.

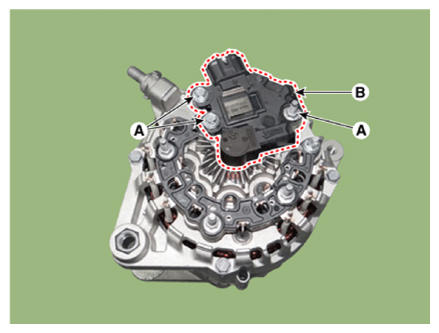

Remove the mounting bolts (A) and the regulator assembly (B).

Courtesy of KIA MOTORS AMERICA, INC.

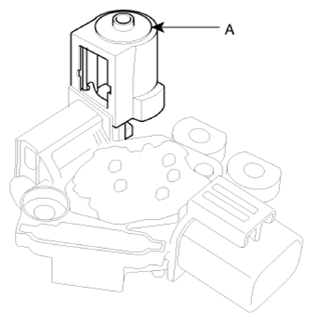

Remove the slip ring guide (A) after pulling it.

Courtesy of KIA MOTORS AMERICA, INC.

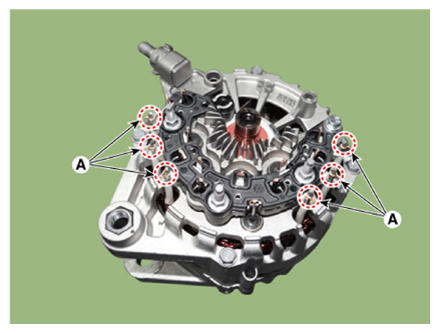

Unsolder the 3 stator leads (A).

Courtesy of KIA MOTORS AMERICA, INC.

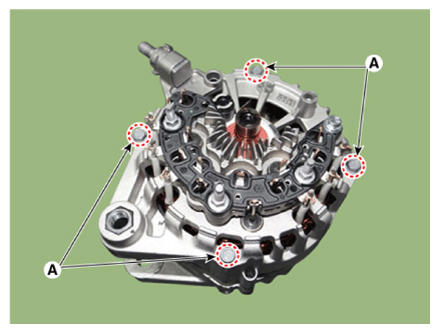

Remove the 4 through bolts (A).

Courtesy of KIA MOTORS AMERICA, INC.

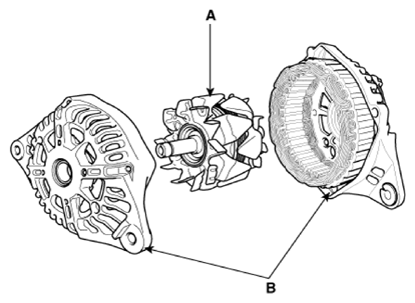

Disconnect the rotor (A) and bracket (B).

Courtesy of KIA MOTORS AMERICA, INC.
