Repair Procedures: Inspection
WARNING: This page is about a different car, the 2024 Kia Forte. However, it is still accessible from the selected car via links, so may be relevant.
- Remove the overhead console lamp.
(Refer to Lighting System - "OVERHEAD CONSOLE LAMP ")

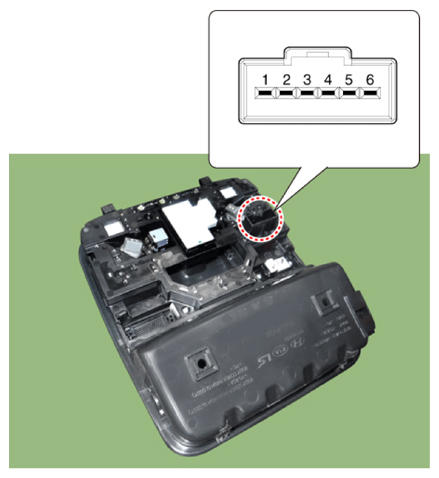

- Check for continuity between terminals.
Pin Function 1 Battery (+) 2 Door (-) 3 Room signal 4 - 5 - 6 Ground
