Repair Procedures: Replacement
- Disconnect the negative (-) battery terminal.

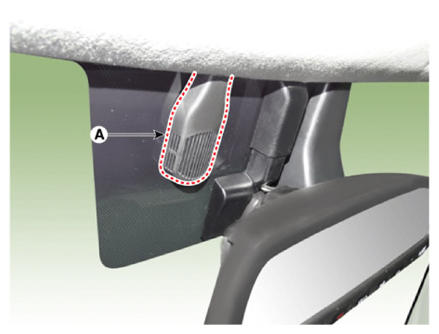

- Remove the auto defogging cover (A).
 Courtesy of KIA MOTORS AMERICA, INC.
|

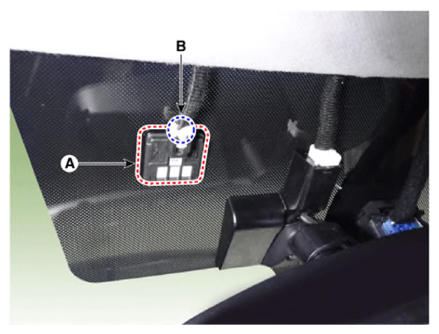

- Disconnect the connector (B) and then remove the auto defogging sensor (A).
 Courtesy of KIA MOTORS AMERICA, INC.
|
- To install, reverse the removal procedure.
