Repair Procedures: Installation

  1. Install in the reverse order of removal.
NOTE:

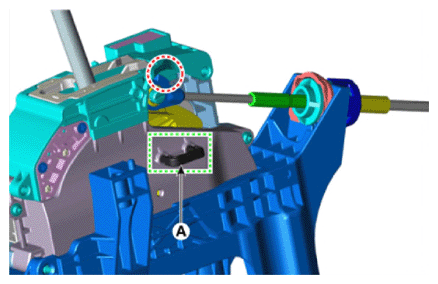

  • Before installation, insert "N range fixing pin" (A) of shift lever after checking the shift lever and manual control lever are on "N" range.
  • Install the shift cable after checking the direction of projection to prevent incorrect assembly.
    G13304194Courtesy of KIA MOTORS AMERICA, INC.

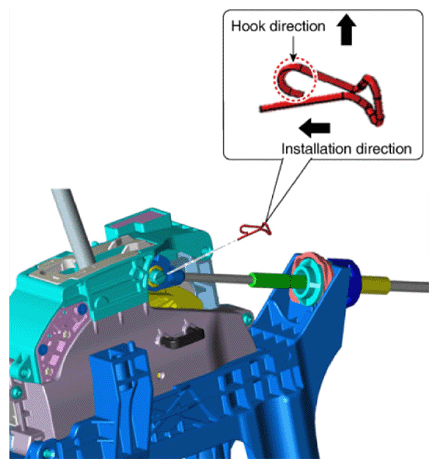

  • Mind the installation direction of snap pin and install the snap pin with the hook facing upward.
    G13304195Courtesy of KIA MOTORS AMERICA, INC.

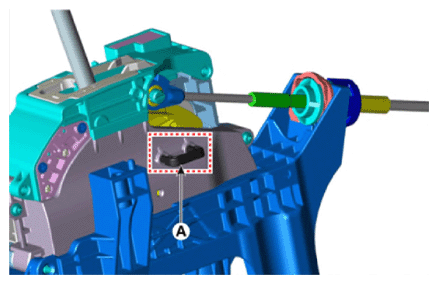

  • Make sure to get rid of "N range fixing pin" (A) after installing the shift lever assembly.
    G13304196Courtesy of KIA MOTORS AMERICA, INC.
