Connector and Terminal function

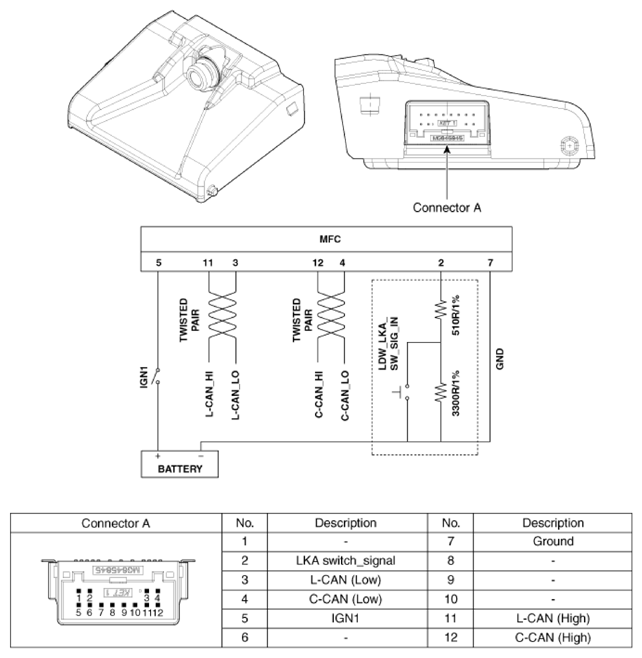

Fig 1: Front Camera Unit Connector End View And Terminal Description
G13128645Courtesy of KIA MOTORS AMERICA, INC.
