Repair Procedures: Removal

  1. Disconnect the negative (-) battery terminal.
  2. Remove the steering wheel.

    (Refer to Steering System - "STEERING WHEEL ")

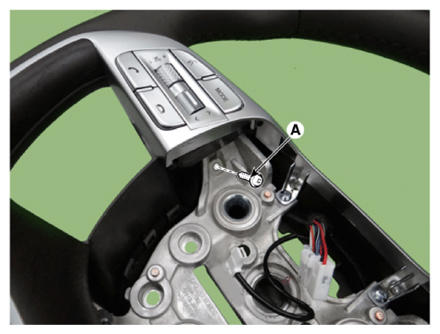

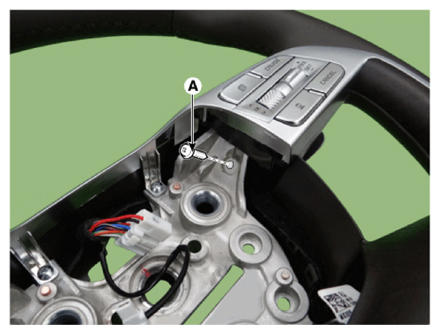

  3. Loosen the paddle shift switch mounting screws (A).
    G13143146Courtesy of KIA MOTORS AMERICA, INC.
    G13143147Courtesy of KIA MOTORS AMERICA, INC.

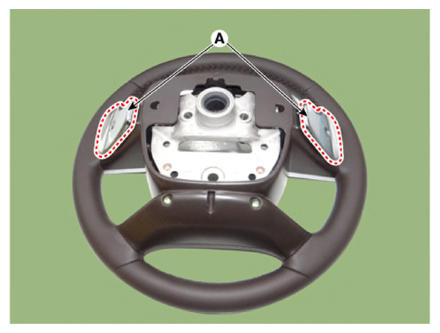

  4. Remove the paddle shift switch (A).
    G13143148Courtesy of KIA MOTORS AMERICA, INC.

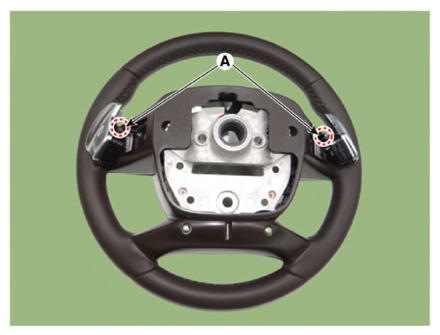

  5. Disconnect the paddle shift switch connector (A).
    G13143149Courtesy of KIA MOTORS AMERICA, INC.

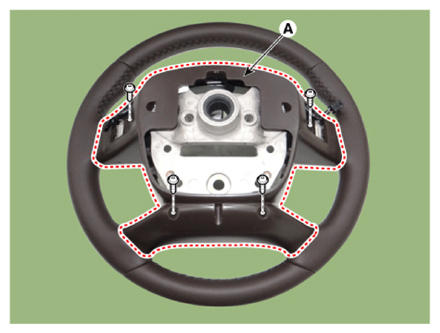

  6. Remove the steering wheel rear cover (A) after loosening the screws.
    G13143150Courtesy of KIA MOTORS AMERICA, INC.

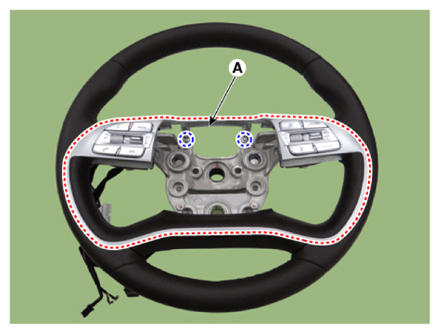

  7. Remove the steering wheel front cover (A) after loosening the screws.
    G13143151Courtesy of KIA MOTORS AMERICA, INC.

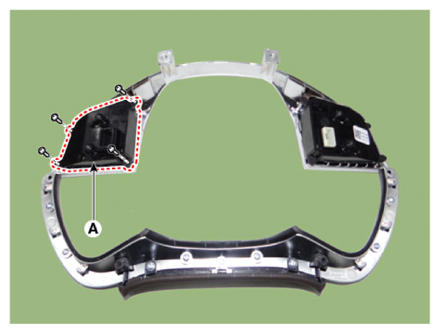

  8. Remove the steering wheel remote controller (A).
G13143152Courtesy of KIA MOTORS AMERICA, INC.
