Repair Procedures: Replacement

  1. Disconnect the battery negative terminal.
  2. Remove the crash pad center panel (LH).

    (Refer to Body - "CRASH PAD CENTER PANEL ")

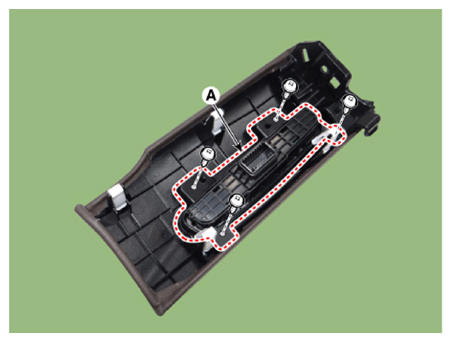

  3. Remove the side crash pad switch assembly (A) after loosening the mounting screws.
    G13127836Courtesy of KIA MOTORS AMERICA, INC.
  4. Install in the reverse order of removal.
