With ECS: 2WD

  1. Disconnect the battery negative terminal.
  2. Remove the front wheel and tire.

    (Refer to Suspension System - "WHEEL ")

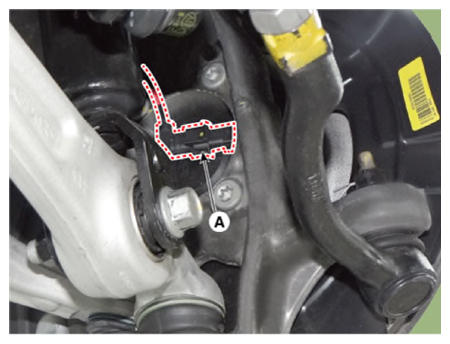

  3. Disconnect the front wheel speed sensor connector (A).
    G13127815Courtesy of KIA MOTORS AMERICA, INC.

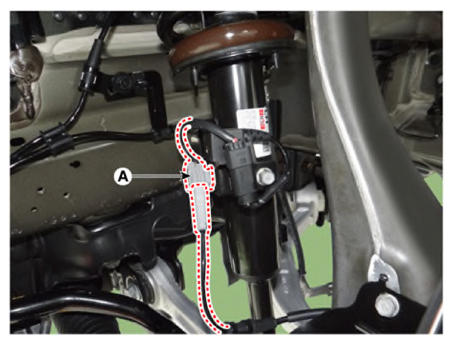

  4. Disconnect the extension wiring connector (A).
    G13127816Courtesy of KIA MOTORS AMERICA, INC.

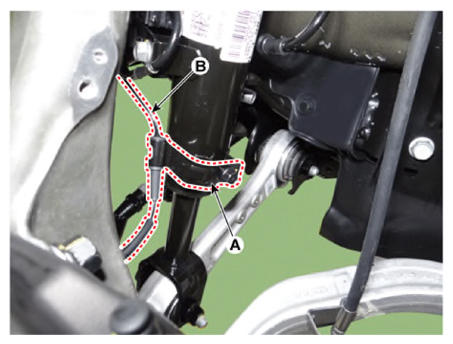

  5. Disconnect the bracket (A) and then remove the extension wiring (B).

    Tightening torque:

    8.8 - 13.7 N.m (0.9 - 1.4 kgf.m, 6.5 - 10.1 lb.ft)

    G13127817Courtesy of KIA MOTORS AMERICA, INC.
  6. Remove the front hub bearing (front wheel speed sensor).

    (Refer to Driveshaft and axle - "FRONT HUB/KNUCKLE ")

  7. Install in the reverse order of removal.
