Without ECS: 2WD

Disconnect the battery negative terminal.
Remove the front wheel and tire.
(Refer to Suspension System - "WHEEL ")

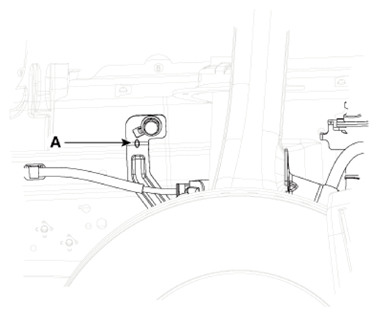

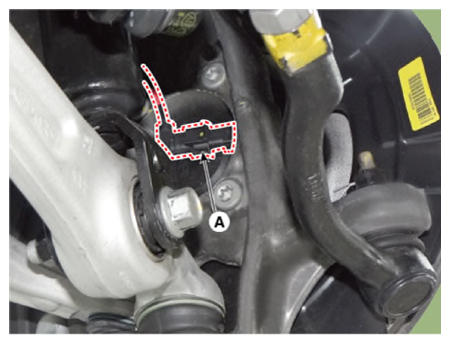

Disconnect the front wheel speed sensor connector (A).

Courtesy of KIA MOTORS AMERICA, INC.

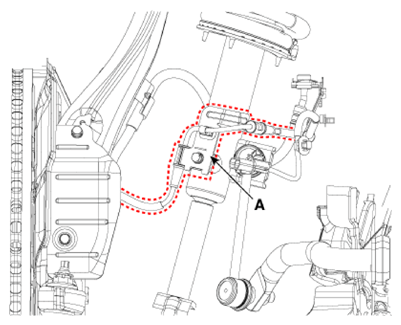

Disconnect the front wheel speed sensor brackets (A).
Tightening torque:

6.9 - 10.8 N.m (0.7 - 1.1 kgf.m, 5.1 - 7.6 lb.ft)

Courtesy of KIA MOTORS AMERICA, INC.

Tightening torque:

8.8 - 13.7 N.m (0.9 - 1.4 kgf.m, 6.5 - 10.1 lb.ft)

Courtesy of KIA MOTORS AMERICA, INC.
Remove the LH front wheel guard.
(Refer to Body - "FRONT WHEEL GUARD ")

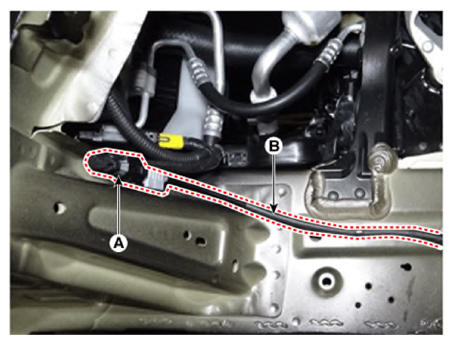

Disconnect the connector (A) and then remove the extension wiring (B).

Courtesy of KIA MOTORS AMERICA, INC.
Remove the front hub bearing (front wheel speed sensor).
(Refer to Driveshaft and axle - "FRONT HUB/KNUCKLE ")
Install in the reverse order of removal.
