Repair Procedures: Replacement

Disconnect the battery negative terminal.
Remove the rear wheel and tire.
(Refer to Suspension System - "WHEEL ")

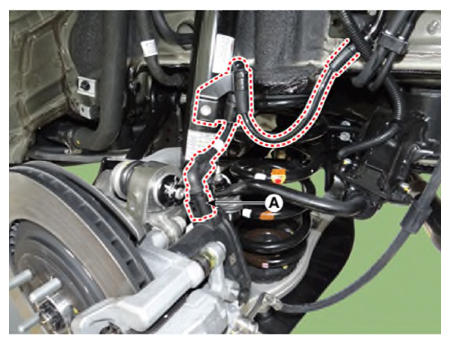

Disconnect the EPB connector (A).

Courtesy of KIA MOTORS AMERICA, INC.

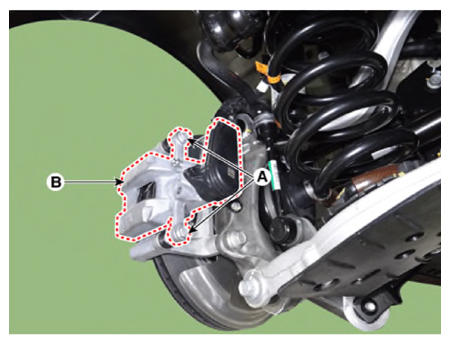

Loosen the guide rod bolts (A) and tie the caliper body (B) up with suitable wire to near part.
Tightening torque:

37.3 - 41.2 N.m (3.8 - 4.2 kgf.m, 27.5 - 30.4 lb.ft)

Courtesy of KIA MOTORS AMERICA, INC.

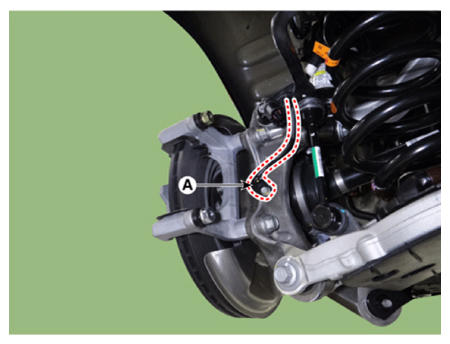

Disconnect the rear wheel speed sensor (A).
Tightening torque:

6.9 - 10.8 N.m (0.7 - 1.1 kgf.m, 5.1 - 7.6 lb.ft)

Courtesy of KIA MOTORS AMERICA, INC.
Remove the rear wheel guard.
(Refer to Body - "REAR WHEEL GUARD ")

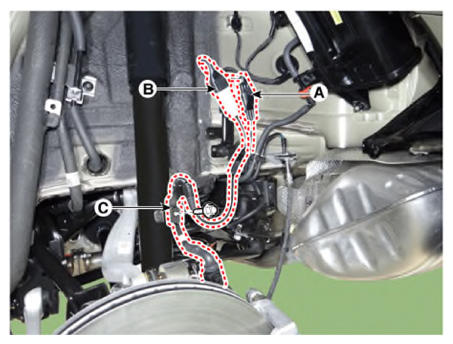

Disconnect the height sensor connector (A).
Disconnect the extension connector (B).
Remove the rear wheel speed sensor (C) by loosening the bracket mounting bolt.
Tightening torque:

8.8 - 13.7 N.m (0.9 - 1.4 kgf.m, 6.5 - 10.1 lb.ft)

Courtesy of KIA MOTORS AMERICA, INC.
Install in the reverse order of removal.
