Repair Procedures: Replacement

1. Turn the ignition switch OFF.

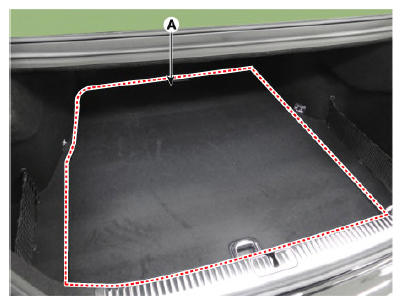

2. Remove the luggage covering (A).

   Courtesy of KIA MOTORS AMERICA, INC.

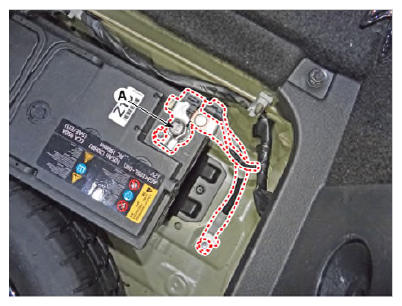

3. Turn the ignition switch OFF and disconnect the battery negative (-) terminal (A).

   Tightening torque:

   5.9 - 11.8 N.m (0.6 - 1.2 kgf.m, 4.3 - 8.7 lb.ft)

   Courtesy of KIA MOTORS AMERICA, INC.

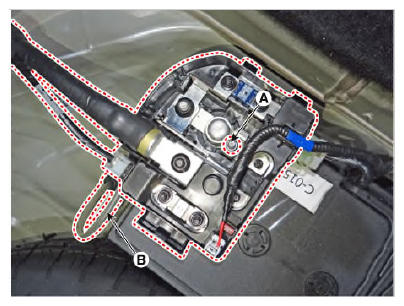

4. Disconnect the battery positive (+) terminal (A).
5. Disconnect the vent hose (B).

   Tightening torque:

   7.8 - 9.8 N.m (0.8 - 1.0 kgf.m, 5.8 - 7.2 lb.ft)

   Courtesy of KIA MOTORS AMERICA, INC.

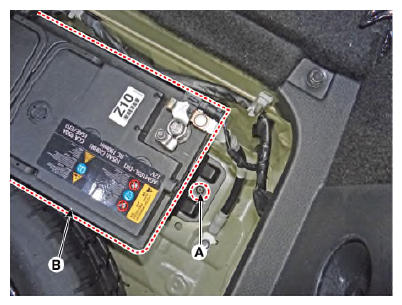

6. Remove the mounting bracket (A) and then remove the battery (B).

   Tightening torque:

   8.8 - 13.7 N.m (0.9 - 1.4 kgf.m, 6.5 - 10.1 Ib.ft)

   Courtesy of KIA MOTORS AMERICA, INC.

7. Install in the reverse order of removal.

Information

• After disconnecting then reconnecting the battery negative cable, reset some parts that require the reset procedures.

  (Refer to Body Electrical System - "GENERAL INFORMATION ")
