Repair Procedures: Removal

Switch "OFF" the ignition and disconnect the negative (-) battery cable.

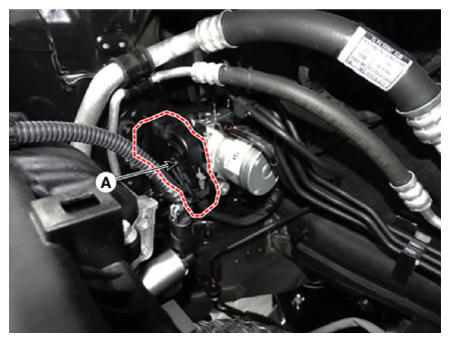

Pull up the lock of the HECU connector, then disconnect the connector.

Courtesy of KIA MOTORS AMERICA, INC.

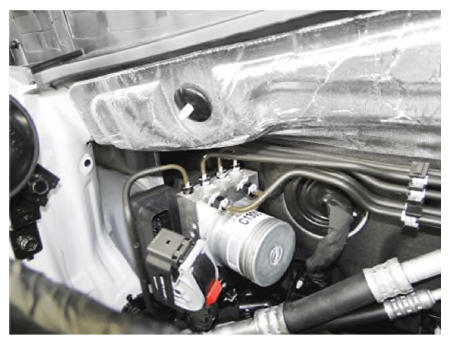

Disconnect the brake tubes from the HECU by unlocking the nuts counterclockwise with a spanner.
Tightening torque:

13.7 - 16.7 N.m (1.4 - 1.7 kgf.m, 10.1 - 12.3 lb.ft)

Courtesy of KIA MOTORS AMERICA, INC.

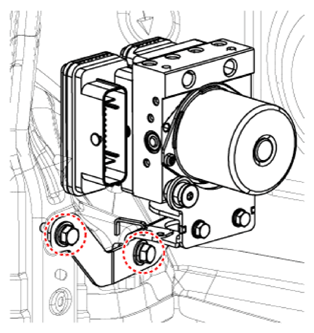

Loosen the HECU bracket bolts, then remove HECU and bracket.
Tightening torque:

19.6 - 29.4 N.m (2.0 - 3.0 kgf.m, 14.5 - 21.7 lb.ft)

Courtesy of KIA MOTORS AMERICA, INC.

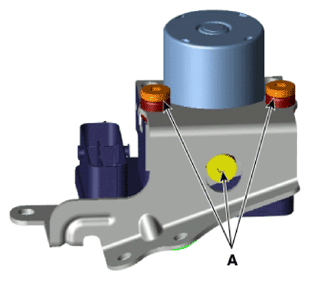

Remove the bolts (A) and then remove the bracket from HECU.
Tightening torque:

10.8 - 13.7 N.m (1.1 - 1.4 kgf.m, 8.0 - 10.1 lb.ft)

Courtesy of KIA MOTORS AMERICA, INC.
NOTE:
1. Never attempt to disassemble the HECU.
2. The HECU must be transported and stored in.
3. Do not impact the HECU.
