Components And Components Location: Components

WARNING: This page is about a different car, the 2020 Hyundai Kona. However, it is still accessible from the selected car via links, so may be relevant.

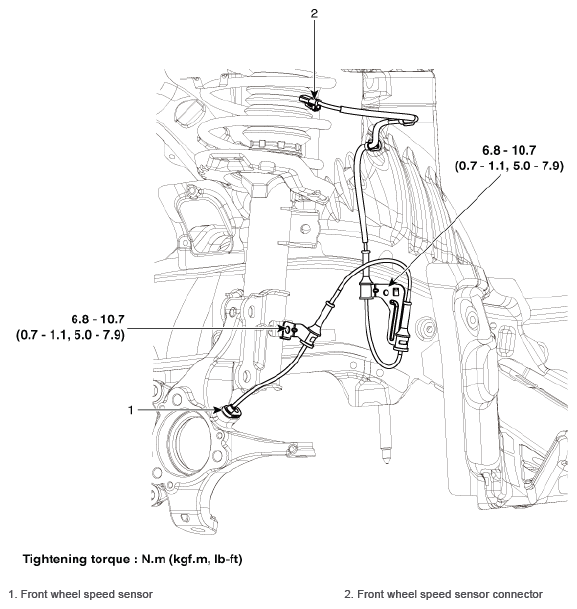

Fig 1: Locating Front Wheel Speed Sensor Components With Torque Specification
G12602839Courtesy of HYUNDAI MOTOR AMERICA
