Repair Procedures: Replacement

WARNING: This page is about a different car, the 2021 Kia Seltos. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION: Wear gloves to protect hands from injury.

Information

When removing and installing the tailgate, an assistant is needed.

Remove the tailgate trim.
(Refer to Tailgate - "TAILGATE TRIM ")

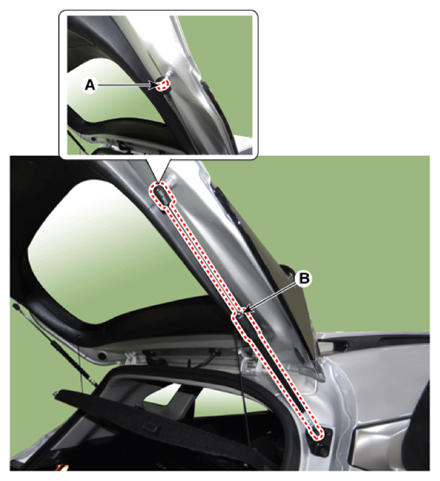

Using a screwdriver, lift the socket clips (A) up slightly on both ends of the tailgate lifter (B).

Courtesy of KIA MOTORS AMERICA, INC.

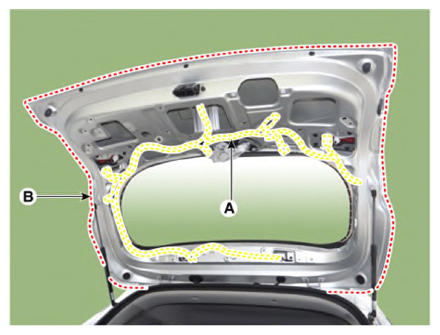

Disconnect the connectors and tailgate wiring harness (A).
After loosening the mounting bolts, then remove the tailgate assembly (B).
Tightening torque:

21.6 - 26.5 N.m (2.2 - 2.7 Kgf.m, 15.9 - 19.5 lb.ft)

Courtesy of KIA MOTORS AMERICA, INC.
To install, reinstall in reverse order of removal procedure.
NOTE:
- Make sure the tailgate locks/unlocks and opens/closes properly.
- Adjust the tailgate alignment.
- Make sure the connectors are connected in properly.
- Replace any damaged clips (or pin-type retainers).
