Connector And Terminal Function
WARNING: This page is about a different car, the 2021 Kia Seltos. However, it is still accessible from the selected car via links, so may be relevant.

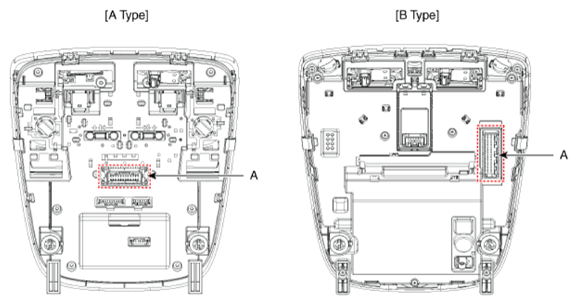

[A Type]
| Connector A | |
|---|---|
| Pin | Function |
| 1 | Battery (+) |
| 2 | IGN1 (PAB) |
| 3 | IGN1 (SBR) |
| 4 | eCall PWM |
| 5 | - |
| 6 | eCall button |
| 7 | - |
| 8 | eCall ground |
| 9 | Ground (Room, Door lamp) |
| 10 | PAB ON |
| 11 | PAB OFF |
| 12 | Ground (PAB, SBR) |
| 13 | LED (Red) |
| 14 | LED (Green) |
| 15 | ACC |
| 16 | Button back light |
| 17 | - |
| 18 | Door (-) |
| 19 | Room lamp signal |
| 20 | SBR (Rear left) |
| 21 | SBR (Rear center) |
| 22 | SBR (Rear Right) |
| 23 | Ground (eCall MCU) |
| 24 | Ground (eCall LED) |

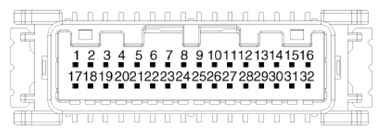

[B Type]
| Connector A | |
|---|---|
| Pin | Function |
| 1 | Battery (+) |
| 2 | IGN1 (PAB) |
| 3 | - |
| 4 | eCall PWM |
| 5 | - |
| 6 | eCall button |
| 7 | - |
| 8 | IGN1 (ETCS) |
| 9 | Ground (PAB, SBR, ETCS, TMU, DVRS) |
| 10 | - |
| 11 | - |
| 12 | eCall ground |
| 13 | Ground (Room, Door lamp) |
| 14 | PAB ON |
| 15 | PAB OFF |
| 16 | Door (-) |
| 17 | LED (Red) |
| 18 | LED (Green) |
| 19 | ACC |
| 20 | Button back light |
| 21 | IGN1 (SBR) |
| 22 | Room lamp signal |
| 23 | - |
| 24 | - |
| 25 | SBR (Rear left) |
| 26 | SBR (Rear center) |
| 27 | SBR (Rear Right) |
| 28 | Ground (eCall MCU) |
| 29 | Ground (eCall LED) |
| 30 | - |
| 31 | - |
| 32 | - |
