Repair Procedures: Inspection
WARNING: This page is about a different car, the 2021 Kia Seltos. However, it is still accessible from the selected car via links, so may be relevant.

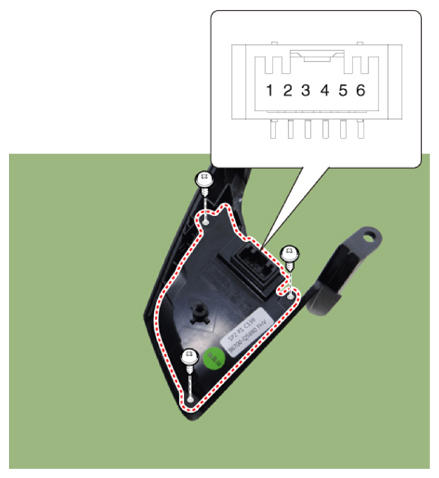

- Check for resistance between terminals in each switch position.
Switch Connector terminal Resistance (±3%) Cancel 2-6 390 Ω SET - 610 Ω RES + 910 Ω Cruise ON/OFF 1.38 kΩ Cruise & Speed Limit ON/OFF 2.13 kΩ SCC (Following distance control) 3.63 kΩ Trip group 1-6 390 Ω Trip up 610 Ω Trip down 910 Ω Trip OK 1.38 kΩ LFA 3.63 kΩ
