Repair Procedures: Installation

WARNING: This page is about a different car, the 2021 Hyundai Kona. However, it is still accessible from the selected car via links, so may be relevant.

Dowel pin of crankshaft should be positioned at 3° in relation to vertical center line.

Courtesy of HYUNDAI MOTOR AMERICA
Align the TDC marks (A) of the CVVT sprockets with the upper surface of the cylinder head to make No. 1 cylinder be positioned at TDC.

Courtesy of HYUNDAI MOTOR AMERICA

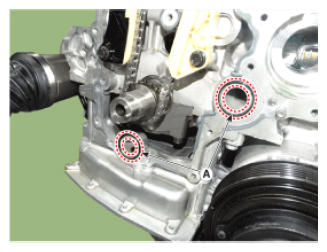

Install the new O-rings (A).

Courtesy of HYUNDAI MOTOR AMERICA
Install the timing chain guide (A) and the timing chain (B).
Tightening Torque:

9.8 - 11.8 N.m (1.0 - 1.2 kgf.m, 7.2 - 8.7 lb-ft)

Courtesy of HYUNDAI MOTOR AMERICA
NOTE:
- When installing a timing chain, align the timing marks on the sprockets with paint marks of the chain.
- Order: Crankshaft sprocket → Timing chain guide → Intake CVVT sprocket → Exhaust CVVT sprocket.
Courtesy of HYUNDAI MOTOR AMERICA

Courtesy of HYUNDAI MOTOR AMERICA
Install the chain tensioner arm (A).
Tightening Torque:

9.8 - 11.8 N.m (1.0 - 1.2 kgf.m, 7.2 - 8.7 lb-ft)

Courtesy of HYUNDAI MOTOR AMERICA
Install the hydraulic tensioner (A) and remove the pin (B).
Tightening Torque:

9.8 - 11.8 N.m (1.0 - 1.2 kgf.m, 7.2 - 8.7 lb-ft)

Courtesy of HYUNDAI MOTOR AMERICA
After rotating crankshaft 2 revolutions in regular direction (clockwise viewed from front), confirm that the TDC marks (A) on the intake and exhaust CVVT sprockets aligned with the top surface of cylinder head.

Courtesy of HYUNDAI MOTOR AMERICA
Install the timing chain cover & oil pump assembly.
(Refer to Timing System - "TIMING CHAIN COVER & OIL PUMP ASSEMBLY ")
