Repair Procedures: Installation

WARNING: This page is about a different car, the 2020 Hyundai Kona. However, it is still accessible from the selected car via links, so may be relevant.
  1. Apply soap powder on the shaft to prevent being damaged between the shaft spline and the dynamic damper.
  2. Install the dynamic damper.
  3. Install the dynamic damper band.

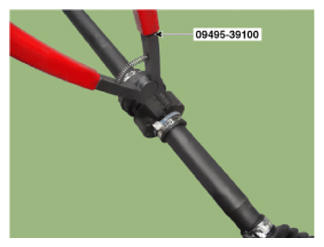

  4. Using the SST (09495-39100), secure the TJ boot bands.
    G12605814Courtesy of HYUNDAI MOTOR AMERICA
    NOTE:
    • Do not reuse the boot band.
  5. Install the TJ joint assembly.

    (Refer to Driveshaft Assembly - "TJ JOINT ")

  6. Install the front driveshaft.

    (Refer to Driveshaft Assembly - "FRONT DRIVESHAFT ")

  7. Check the front alignment.

    (Refer to Suspension System - "ALIGNMENT ")
