Repair Procedures: Installation
WARNING: This page is about a different car, the 2020 Hyundai Kona. However, it is still accessible from the selected car via links, so may be relevant.
- To install, reverse the removal procedures.NOTE:

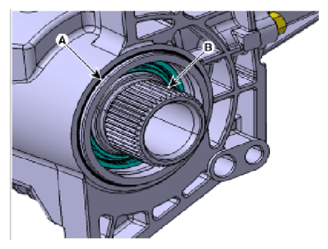

- Be careful not to damage the O-ring (A), If the O-ring is damaged, replace with a new one.
- Smear and cover splines (B) with molybdenum type high pressure grease.
GREASE: SPL-1 or equivalent
[Gasoline 1.6]
[Gasoline 2.0]
- Install the propeller shaft to be near runout marking (transfer assembly 1ea, propeller shaft 1ea) each other.
