Repair Procedures: Removal
WARNING: This page is about a different car, the 2020 Hyundai Kona. However, it is still accessible from the selected car via links, so may be relevant.
[Gasoline 1.6]
- Remove the under cover.
(Refer to Engine Mechanical System - "ENGINE ROOM UNDER COVER ")
- Remove the subframe.
(Refer to Suspension System - "SUBFRAME ")

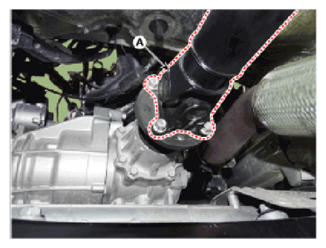

- Remove the propeller shaft (A).
Tightening Torque:
49.0 - 63.7 N.m (5.0 - 6.5 kgf.m, 36.1 - 47.0 lb-ft)

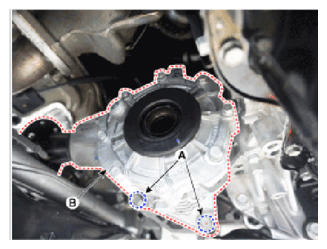

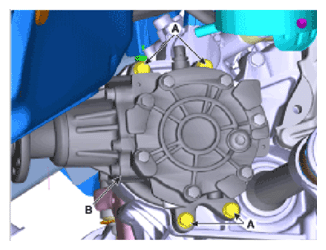

- Remove the transfer assembly (B) after loosening the transfer mounting bolts (A).
[Gasoline 2.0]
- Remove the under cover.
(Refer to Engine Mechanical System - "ENGINE ROOM UNDER COVER ")
- Remove the driveshaft axle of right side.
(Refer to Driveshaft and Axle - "FRONT DRIVESHAFT ")

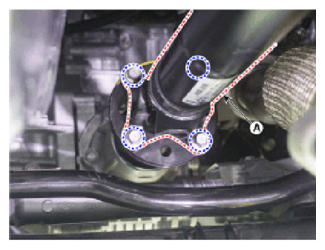

- Remove the propeller shaft (A).

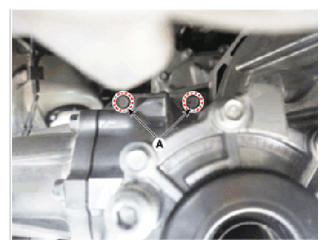

- Remove the transfer assembly (B) after loosening the transfer mounting bolts (A).
